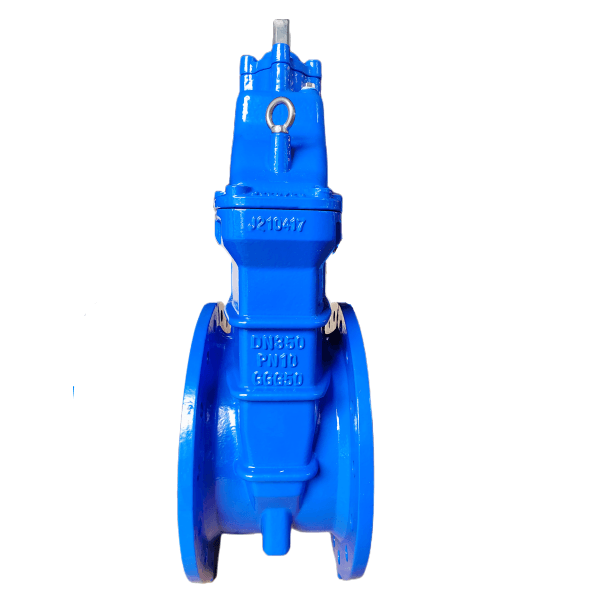

GGG50 Resilient Gate Valve, DIN 3352 Part 4, DN350, PN10

Name: GGG50 Resilient Gate Valve, DIN 3352 Part 4, DN350, PN10
SKU: 14GS1RG50
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover a high-quality DIN F4 Resilient Seat Gate Valve by a trusted manufacturer, compliant with DIN 3352 Part 4 standards. This valve features specifications including DN350 size, PN10 pressure rating, 14-inch design, and Class 150 LB performance. Crafted with a GGG50 Body and EPDM lining, it ensures durability and efficient sealing. The handwheel operation adds convenience, and its flanged end simplifies installation. Explore this reliable valve for your industrial needs today.

Request a quote

Detail Information

DIN F4 Resilient Gate Valve, DN350, PN10, Flanged, GGG50 Body, EPDM lined, Handwheel

Valve Description:
1871001 Resilient Gate Valve 14GS1RG50
Design Standard: DIN 3352 Part 4
Structure: Resilient Seat
Nominal size: DN350
Nominal class: PN10
End Connection: Flanged End
Operation: /
Body Material: GGG50
Trim Material: GGG5-+EPDM
Face to face: DIN 3202 F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap

Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: PN10, PN16
End connection: Flanged, Threaded
Working temperature: -29℃ - +80℃
Suitable Service: Water
