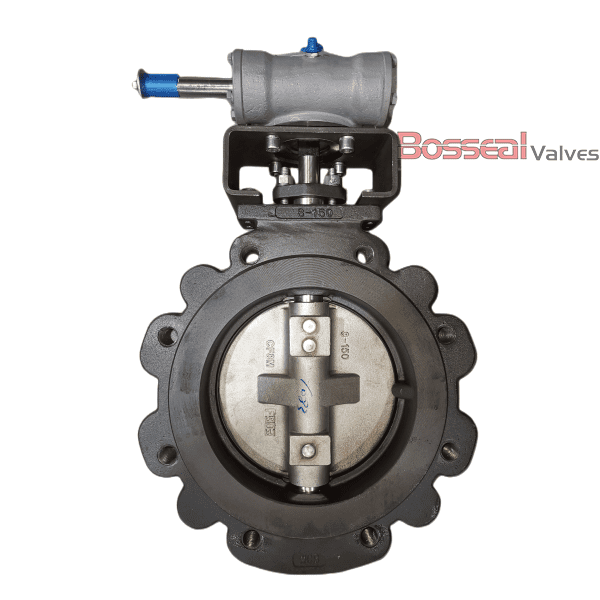

EN 593 Titanium Butterfly Valve, 14 IN, CL300, API 609 Cat B
Model Number: 1862146
Key Specifications / Features
We offer high-quality titanium butterfly valves featuring a double eccentric design. Our valves conform to EN 593 and API 609 Category B standards, ensuring superior performance and reliability. Available in a 14-inch size (DN350) with a 300 LB rating and PN50 pressure class, they are equipped with a soft seat for excellent sealing. The valves also feature a 17-4PH stainless steel stem for enhanced strength and durability, making them ideal for demanding industrial applications. As a leading butterfly valve manufacturer in China, we are committed to delivering top-notch products that meet the highest industry standards.
Detail Information

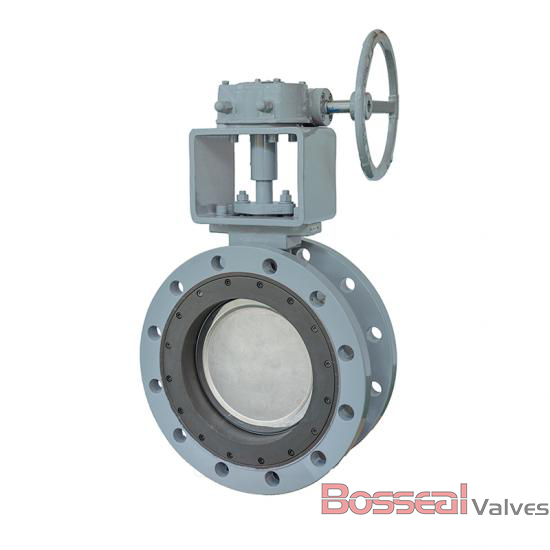

Double Eccentric High-Performance Butterfly Valve, 14 Inch/DN350, 300 LB, RPTFE Seat, Double Flanged Ends.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 14 Inch, DN350
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150-300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Valve Description
1862146 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 14 Inch, DN350
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150-300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
