ASTM B148 C95800 Soft Seated Butterfly Valve, 12 IN, CL 300

High-Performance Butterfly Valves, 12 IN/DN300, 300 LB, Double Offset, Double Flanged End.

Valve Description

1862145 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM B148 C95800, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, Titanium
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Trim Material: ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles)
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator

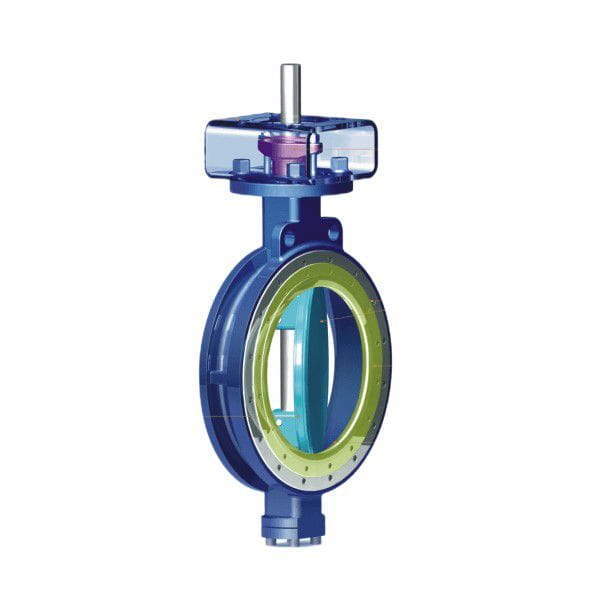

Introduction of Double Eccentric Butterfly Valve

This valve offers significant cost and space savings compared to other valve types, with a broader size range, faster operation, and reduced restriction and wear between the disc and seat sealing surfaces. These features contribute to a longer service life and lower total cost of ownership. With its two-offset design, the valve provides extended durability and lower torque, making it ideal for frequent operation. Bosseal's high-performance butterfly valve has successfully passed a million-cycle test.
