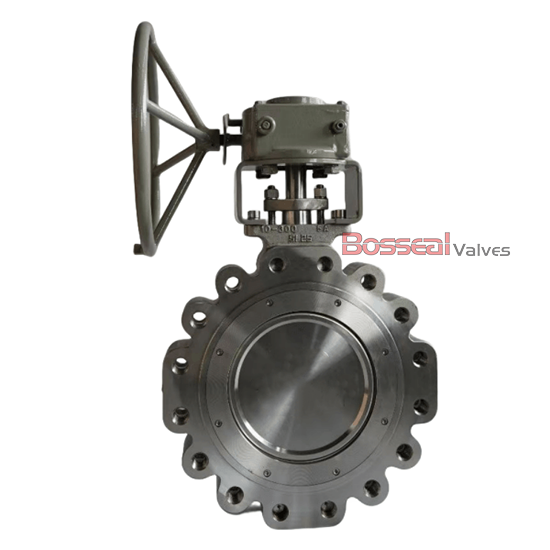

Double Eccentric Lug Butterfly Valves, WCB, 300 LB, 2-1/2 IN
Model Number: 1862223
Key Specifications / Features
As a premier manufacturer of carbon steel butterfly valves, we offer high-quality valves meeting API 609 Category B and EN 593 standards. Made from A216 WCB material, these 2-1/2 inch, 300 LB valves feature a double offset design with RPTFE seating and a 17-4PH stem. Designed with lug ends for easy installation, our valves provide zero leakage, low torque, and long-lasting performance. Bosseal valve advantages include minimal emissions, bi-directional sealing, and fire-safe features, making them ideal for demanding industrial applications.
Detail Information
API 609 Lug Butterfly Valve, RPTFE Seated, 2-1/2 Inch/DN65, Class 300 LB, Lever Operation.
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A.
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 300 LB, PN50
Structure: Double Offset, Double Eccentric
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
End Connection: Lug
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
1862223 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A.
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 300 LB, PN50
Structure: Double Offset, Double Eccentric
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
End Connection: Lug
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
