DIN F4 Resilient Gate Valve, DN350, PN10, DIN 3352, GGG50, RF

DIN F4 Resilient Gate Valve, DN350, PN10, DIN 3352, GGG50, RF

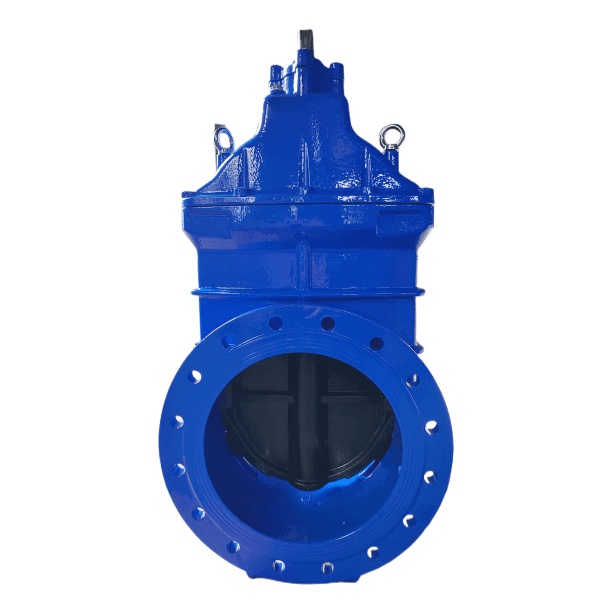

Name: DIN F4 Resilient Gate Valve, DN350, PN10, DIN 3352, GGG50, RF
Brand: www.bossealvalves.com
SKU: 14GS1RG50
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 14GS1RG50

Key Specifications / Features

Resilient Gate Valve Manufacturer - DN350, PN10, 14 Inch, GGG50 Body, DIN 3352 Part 4, EPDM lined, Handwheel, Resilient Seat, DIN 3202 F4, Flanged Ends. Discover high-quality resilient gate valves from a trusted manufacturer. Our DN350 gate valve is designed for PN10 pressure rating and has a size of 14 inches. The valve body is made of GGG50 material, conforming to DIN 3352 Part 4 standards. It features an EPDM lining for enhanced durability and corrosion resistance. With a convenient handwheel, operating the valve is effortless. The resilient seat ensures a reliable and tight seal, meeting DIN 3202 F4 specifications. The valve is equipped with flanged ends, making installation a breeze. Choose our resilient gate valve for dependable performance in various industrial applications.

Flanged Gate Valve RF Gate Valve Resilient Gate Valve DN350 Gate Valve 14 Inch Gate Valve PN10 Gate Valve Ductile Iron GGG50 Gate Valve DIN 3352 Gate Valve

Contact Supplier

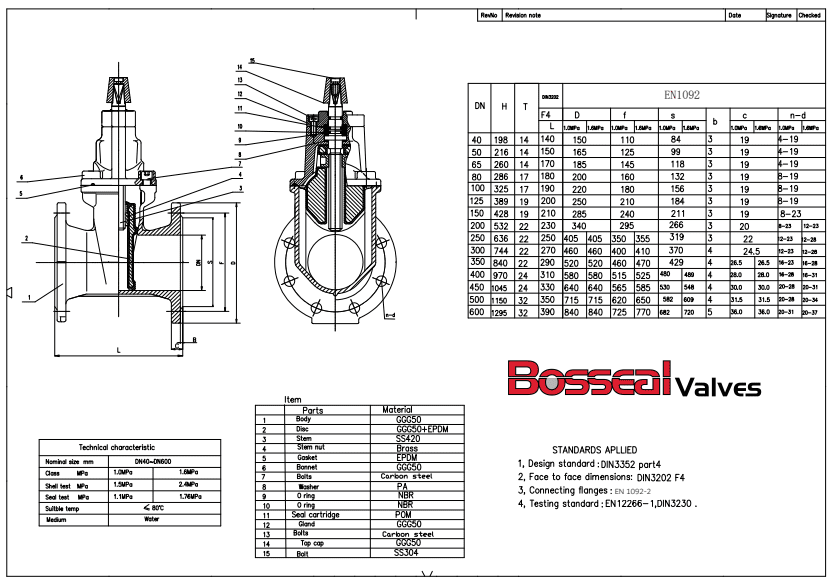

Detail Information

DIN F4 Resilient Gate Valve, DN350, PN10, Flanged, GGG50 Body, EPDM lined, Handwheel

Valve Description:
1871001 Resilient Gate Valve 14GS1RG50
Design Standard: DIN 3352 Part 4
Structure: Resilient Seat
Nominal size: DN350
Nominal class: PN10
End Connection: Flanged End
Operation: /
Body Material: GGG50
Trim Material: GGG5-+EPDM
Face to face: DIN 3202 F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap

Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: PN10, PN16
End connection: Flanged, Threaded
Working temperature: -29℃ - +80℃
Suitable Service: Water
