ASTM A216 WCB Axial Expansion Joint, ASME B16.34, 80 Inch

Name: ASTM A216 WCB Axial Expansion Joint, ASME B16.34, 80 Inch
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Get high-quality Axial Expansion Joints from a reliable supplier. Our Axial Expansion Joint is designed to meet industry standards, including DN2000, PN10, 80 Inch, Class 150 LB, ASTM A216 WCB, ASME B16.34. It features an SS 321 Metal Bellow and a Metal Seat, making it ideal for high-temperature applications. With flanged ends, our Axial Expansion Joint ensures secure and efficient installation. Choose our trusted supplier for all your Axial Expansion Joint needs.

Request a quote

Detail Information

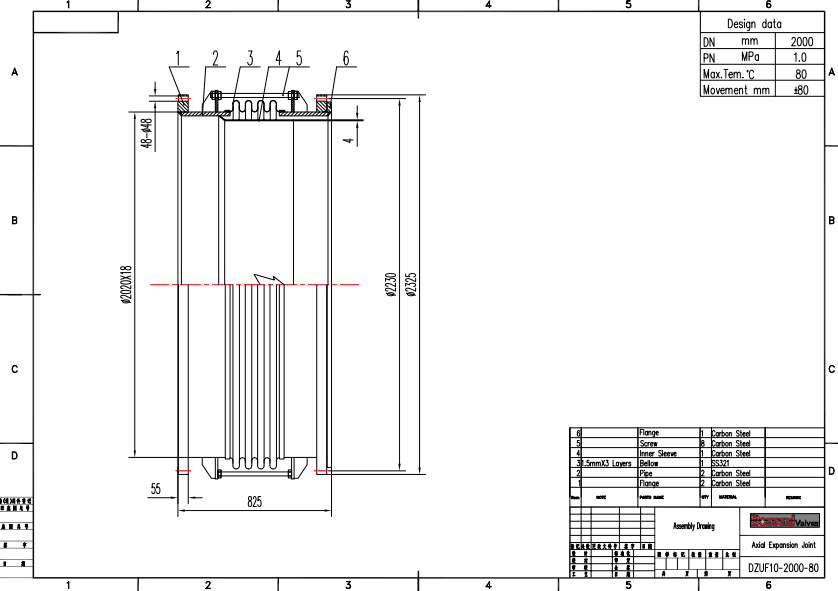

DN2000 PN10 Axial Expansion Joint, WCB Body, SS 321 Bellow

Valve Description:
1871002 Axial Expansion Joint
Design Standard: ASME B16.34
Structure: Metal Bellow
Nominal size: DN2000
Nominal class: PN10
End Connection: Flanged End
Operation: /
Body Material: ASTM A216 WCB
Trim Material: SS 321 Bellow, 1.5mm x 3 layers
Face to face: Client Request
Test and inspection: /
Key Features: Metal Seat for high temperature

Product Range:
Body material: Iron, Steel
Normal diameter: 1/2 - 80 Inch (DN15 - DN2000)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: -29℃ - +400℃
