Carbon Steel Non-Return Valve, 2-1/2 IN, CL600, A352 LCB
Model Number: 1842061
Key Specifications / Features
As a leading fabricator of carbon steel non-return valves from China, we offer dual plate valves in a 2-1/2 inch size, DN65, with a Class 600 LB rating. Constructed from ASTM A352 LCB carbon steel, these valves come with optional soft or metal seats. The design of the plates ensures a lightweight structure with optimized flow efficiency, minimal pressure loss, and rapid operation. The valve’s construction enhances sealing performance even under low-pressure conditions, making it an excellent choice for various applications requiring reliable and efficient performance.
Detail Information
Wafer Dual Plate Check Valve, 2-1/2 Inch, Class 600 LB, ASTM A352 LCB, Wafer, Lug Ends.
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 600 LB, PN100
Body Material: ASTM A352 LCB, ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Pressure Range: Class 150 - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ
Check Valve Specification
1842061 Dual Plate Check ValveDesign Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 600 LB, PN100
Body Material: ASTM A352 LCB, ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Product Selection
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)Pressure Range: Class 150 - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ

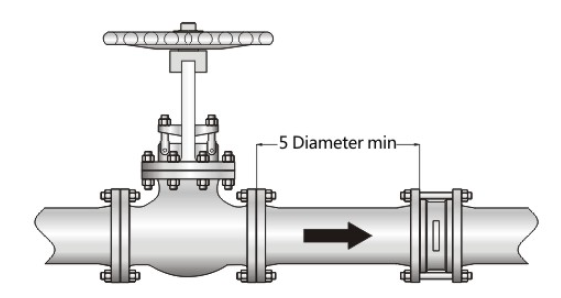

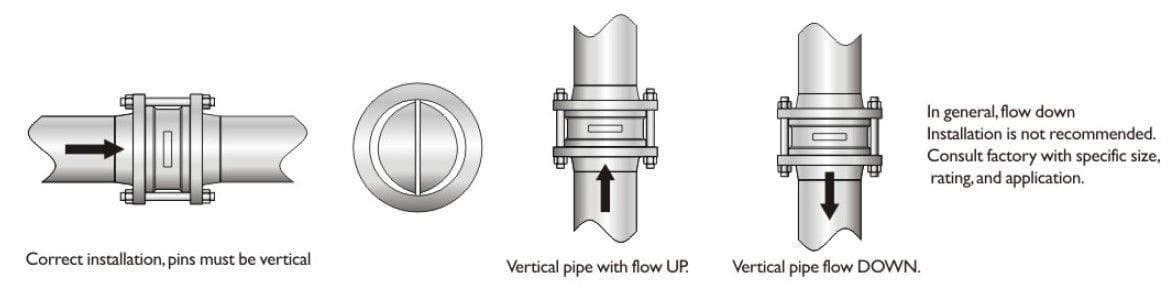

Recommended Installation
