ASTM A352 LCB Trunnion Ball Valve, 4 Inch, 300 LB, API 6D

Name: ASTM A352 LCB Trunnion Ball Valve, 4 Inch, 300 LB, API 6D
Brand: www.bossealvalves.com
SKU: 4BS3RLCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 4BS3RLCB

Key Specifications / Features

Buy ASTM A352 LCB trunnion mounted ball valve for low-temperature service, API 6D certified, 4-inch nominal size, 300 LB pressure rating, raised face connection, equipped with 17-4PH stem, F316 ball & seat, RPTFE seat, operated by a lever, and compliant with Nace MR0175 standard.

API 6D Ball Valve Full Bore Ball Valve Side Entry Ball Valve Bolted Bonnet Ball Valve Trunnion Ball Valve Low Temperature Ball Valve 4 Inch Ball Valve Class 300 LB Ball Valve 2PCS Ball Valve RF Ball Valve ASTM A352 LCB Ball Valve

Detail Information

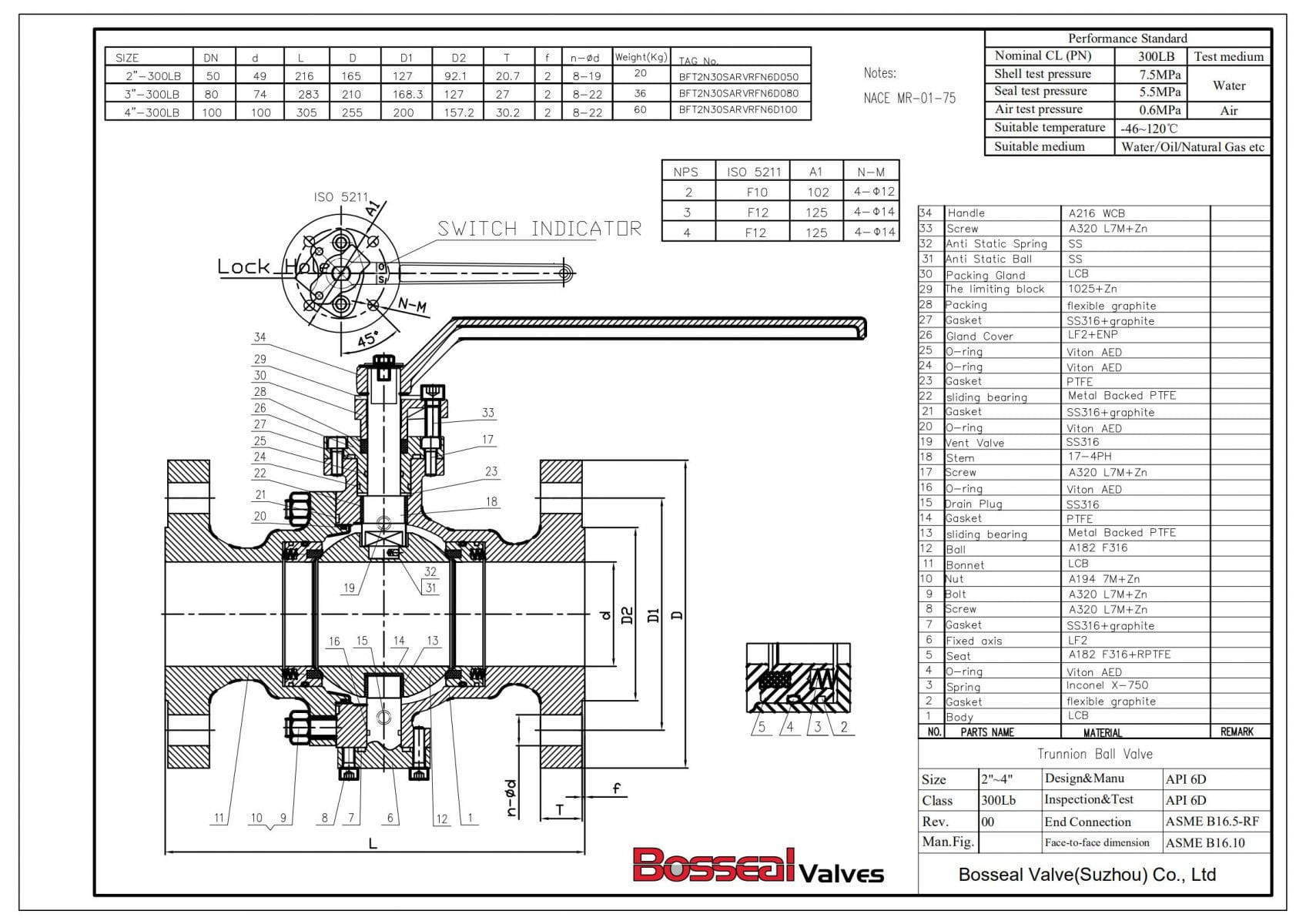

ASTM A352 LCB Trunnion Mounted Ball Valve for Low Temperature, API 6D, 4 Inch, 300 LB, RF, 17-4PH stem, F316 ball & seat, RPTFE seat, Lever Operation, Nace MR0175

Valve Description:
1811024 Trunnion Mounted Ball Valve 4BS3RLCB
Design Standard: API 6D
Structure: Two pieces casting body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 4 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lockable Lever
Body Material: ASTM A352 LCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
