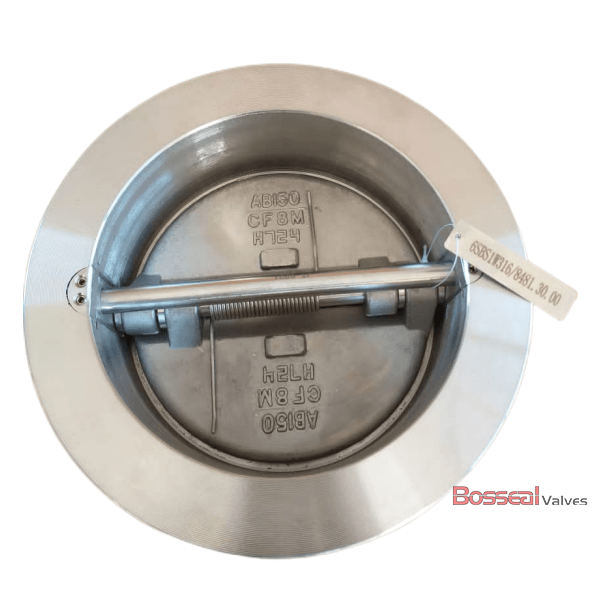

ASTM A352 LCB Dual Plate Check Valve, 2-1/2 IN, Class 150 LB
Model Number: 1842019
Key Specifications / Features
Our Wafer Dual Plate Check Valve, compliant with API 594, is expertly crafted from ASTM A352 LCB material. This 2-1/2 inch, Class 150 LB non-return valve features a spring-loaded mechanism and double flanged ends, ensuring secure and efficient installation. Designed for optimal performance, this valve prevents backflow in a variety of industrial applications. Its robust construction and reliable operation make it a dependable choice for your fluid control needs.
Detail Information
API 594 Dual Plate Check Valve, Non-Return Valve, 2-1/2 Inch, 150 LB, A352 LCB, Wafer/Flanged.
Check Valve Specification:
1842019 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2-1/2 Inch
Nominal Class: Class 150 LB
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Body Material: ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.
End Connections
Check Valve Specification:
1842019 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2-1/2 Inch
Nominal Class: Class 150 LB
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Body Material: ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.
| Product Line | |
| Body Material: | Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium |
| Normal Diameter: | 1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: | Class 150 LB - 2500 LB |
| End Connection: | Wafer, Lug, Flanged-RF, RTJ |
| Working Temperature: | -196°C - +450°C |
| Operation: | Not Applicable (Manual or actuated available for special request). |
End Connections

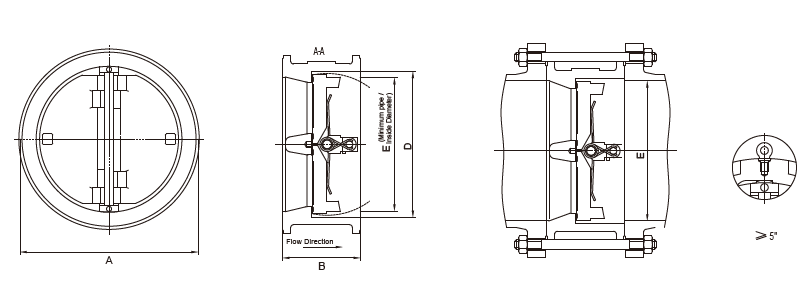

Wafer End

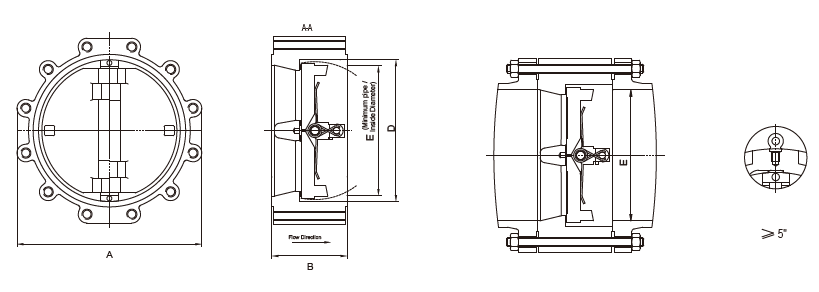

Lug End

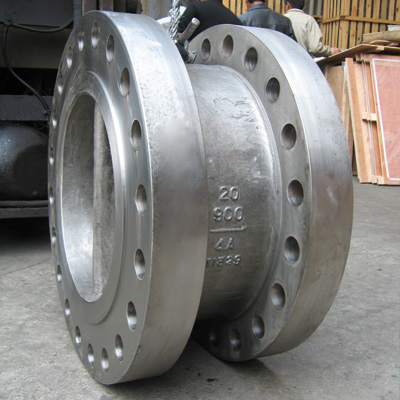

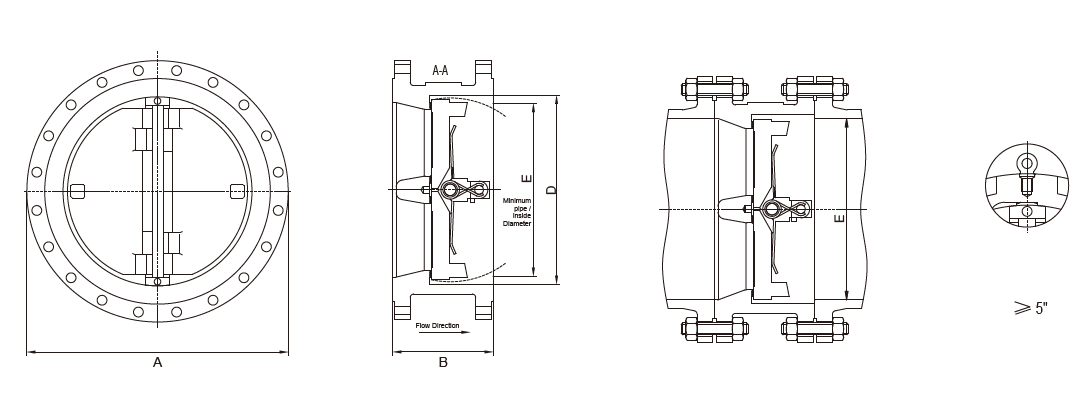

Flanged End
Lug End

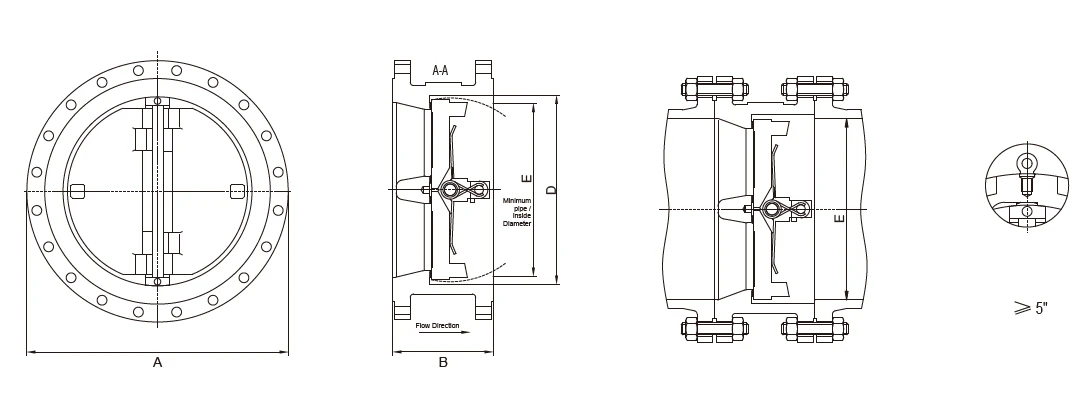

Flanged End
