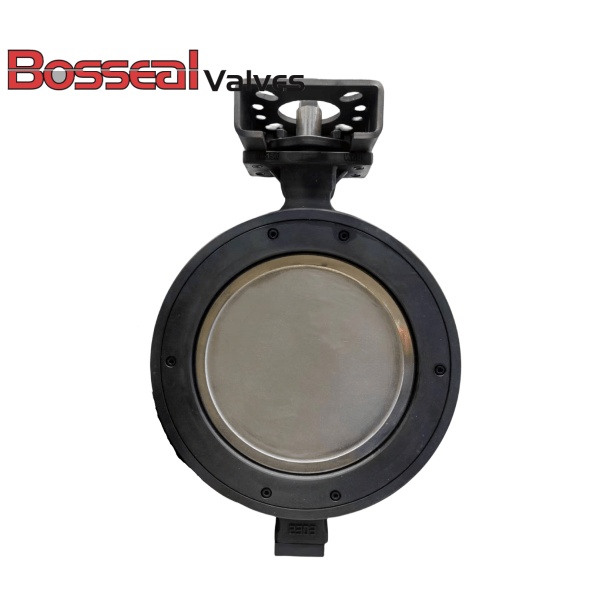

ASTM A216 WCB Wafer Butterfly Valve, 16 Inch, 150 LB, API 609 B, RF
Model Number: 16TB1WWCB
Key Specifications / Features
Explore high-quality wafer butterfly valves from a trusted manufacturer. Our valves feature an ASTM A216 WCB body, an ASTM A351 CF8M disc, and an RPTFE seat. Designed with API 609 B standards, double offset, and bi-directional sealing, these 16-inch valves are suitable for 150 LB, DN400, and PN20 applications. Choose reliability with RF design for optimal performance.
Detail Information
Double Offset Butterfly Valve, High Performance, API 609 B, 16 inch, 150 LB, Wafer, WCB body & CF8M Disc, RPTFE seat, Gear Operation, Bi-direction Sealing
Valve Description:
1862027 Double Offset Butterfly Valve 16TB1WWCB
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 16 Inch
Nominal class: 150 LB
End Connection: Wafer-RF
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: ASTM A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, End service
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
Valve Description:
1862027 Double Offset Butterfly Valve 16TB1WWCB
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 16 Inch
Nominal class: 150 LB
End Connection: Wafer-RF
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: ASTM A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, End service
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
