ASTM A216 WCB Swing Check Valve, 600 LB, 16 Inch, API 594

Name: ASTM A216 WCB Swing Check Valve, 600 LB, 16 Inch, API 594
SKU: 16S6RWCB01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Looking for a reliable Swing Disc Check Valve provider? Our valves conform to industry standards such as BS 1868, API 594, and ASTM A216 WCB. With a bolted bonnet design, our 16-inch (DN400) valve is built to withstand high-pressure conditions, rated at Class 600 LB (PN100). Featuring flanged RF ends and a renewable seat, our check valves ensure secure and efficient fluid flow. Trust our top-quality valves for your industrial needs.

Request a quote

Detail Information

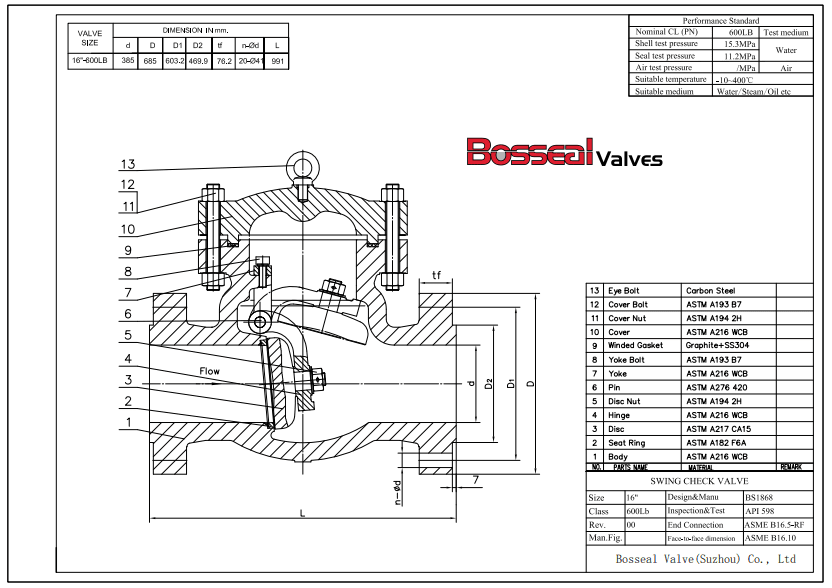

16 Inch/DN400 Swing Check Valve, 600 LB, Flanged RF, BS 1868, WCB body with Trim 1

Valve Description:
1841006 Swing Check Valve 16S6RWCB01
Design Standard: BS 1868, API 594
Structure: Bolted Bonnet, Swing type
Nominal size: 16 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: /
Body Material: ASTM A216 WCB
Trim Material: SS 410, No.1
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: /
