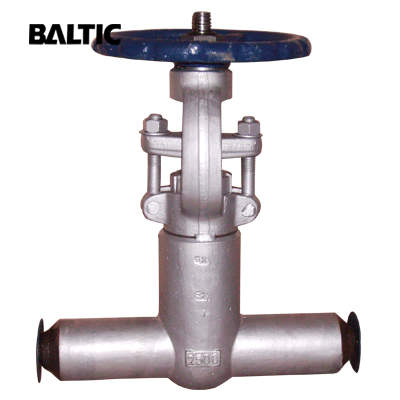

ASTM A182 F11 Gate Valve, API 602, ASME B16.34, 1 IN, 2500 LB

Name: ASTM A182 F11 Gate Valve, API 602, ASME B16.34, 1 IN, 2500 LB
SKU: 1GPS25SF1128
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This F11 Pressure Seal Forged Gate Valve is designed for high-temperature service and meets API 602 standards. It is 1 inch in size and has a pressure rating of 2500 lb with a socket welding connection. The valve body is made of F11 material and features Trim 28, operated by a handwheel.

Request a quote

Detail Information

F11 Pressure Seal Forged Gate Valve, High-Temperature Service, API 602, 1 INCH, 2500 LB, SW, F11 Body, Trim 28, Handwheel

Valve Description:
1851002 API 602 Forged Gate Valve 1GPS25SF1128
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 2500 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: SS304+STL, No.28
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: F5, F9, F11, F22, F91
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 1500LB~2500LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
