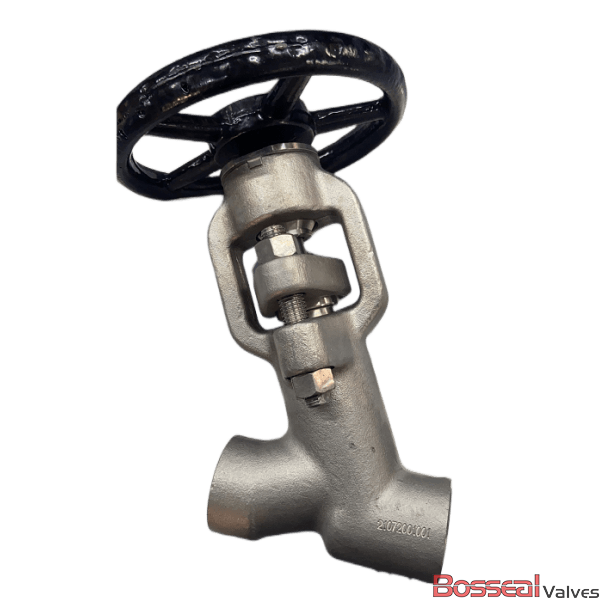

ASME B16.34 Y Globe Valve, CL 1690 LB, ASTM A105N, 1/2 Inch

Name: ASME B16.34 Y Globe Valve, CL 1690 LB, ASTM A105N, 1/2 Inch
SKU: 1852045
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our ASTM A105N Y Globe Valve, manufactured in China, is engineered to meet the highest industry standards, including ASME B16.34 and API 602. This valve features a 1/2 inch size and is rated for 1690 LB pressure conditions, making it suitable for high-pressure applications. The reduced bore type design ensures efficient flow control and minimal pressure drop. It includes a bolted bonnet for easy maintenance and secure operation. The valve is available with SW (Socket Weld), BW (Butt Weld), and NPT (National Pipe Thread) ends, offering flexibility for various installation requirements. Ideal for critical applications, this valve combines durability with precise control to meet the needs of demanding industrial environments.

Request a quote

Detail Information

ASME B16.34 Y Globe Valve, ASTM A105N, 1/2 Inch, Class 1690 LB, Bolted Bonnet, SW Ends

Valve Description:
1852045 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 1/2 Inch
Nominal Class: 1690 LB, PN280
Body Material: ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F316, ASTM A182 F91
Bore Type: Reduced
End Connection: SW, BW, NPT
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Face to Face: MFG'S
Test and Inspection: API 598

Key Features:
Y Pattern
Outside Screw & Yoke (OS&Y )
Live Load Packing
Backseat
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service

Product Range
Body Material:	Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter:	1/2 - 2 Inch (DN15-DN50)
Pressure Range:	800 - 4500 LB
End Connection:	BW, SW, NPT
Working Temperature:	-29°C - +525°C
Operation:	Manual or Actuated
