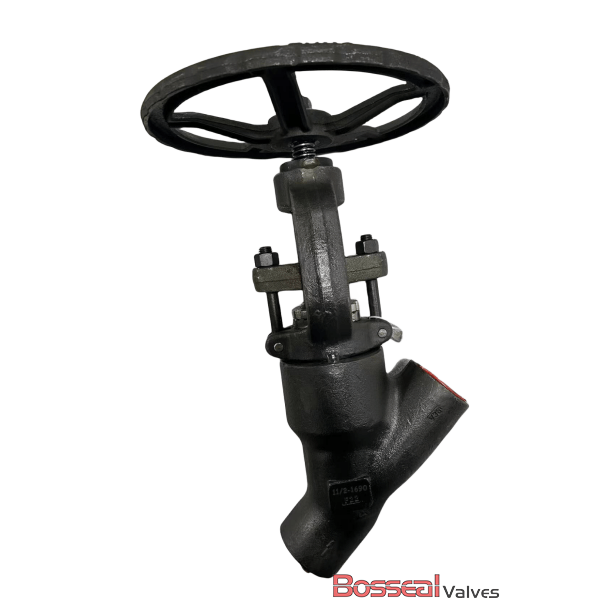

ASME B16.34 Y Globe Valve, 1/2 Inch, CL 2680 LB, A182 F316
Model Number: 1852055
Key Specifications / Features
Our A182 F316 Y-Style Globe Valve, the ideal choice for demanding industrial applications. Expertly manufactured in China, this valve adheres to stringent ASME B16.34 and API 602 standards, guaranteeing exceptional performance and reliability. With a compact 1/2-inch size and a remarkable pressure rating of 2680 LB and PN450, it is perfectly suited for high-pressure scenarios. The valve is equipped with a bolted bonnet for secure assembly and offers flexible installation options with SW (Socket Weld), BW (Butt Weld), and NPT (National Pipe Thread) ends. Its reduced bore design ensures precise flow control, making it perfect for applications requiring accuracy. Combining robust construction with outstanding operational efficiency, this Y-style globe valve is designed for durability and dependable long-term service in challenging conditions.
Detail Information
ASME B16.34 Y Globe Valve, ASTM A182 F316, 1/2 Inch, Class 2680 LB, Bolted Bonnet, SW Ends
Valve Description:
1852055 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 1/2 Inch
Nominal Class: 2680 LB, PN450
Body Material: ASTM A182 F316, ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91
Bore Type: Reduced
End Connection: SW, BW, NPT
Operation: Handwheel
Trim Material: ASTM A182 F6A, F304, F316
Face to Face: MFG'S
Test and Inspection: API 598
Key Features:
1. Y-pattern design
2. Backseat for added safety
3. Rising stem with handwheel for easy operation
4. OS&Y (Outside Screw & Yoke) configuration
5. Live-load packing for enhanced sealing
6. Compact and durable body, ideal for high-temperature and high-pressure applications
7. Options for swivel, plug, or needle disc
Valve Description:
1852055 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 1/2 Inch
Nominal Class: 2680 LB, PN450
Body Material: ASTM A182 F316, ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91
Bore Type: Reduced
End Connection: SW, BW, NPT
Operation: Handwheel
Trim Material: ASTM A182 F6A, F304, F316
Face to Face: MFG'S
Test and Inspection: API 598
Key Features:
1. Y-pattern design
2. Backseat for added safety
3. Rising stem with handwheel for easy operation
4. OS&Y (Outside Screw & Yoke) configuration
5. Live-load packing for enhanced sealing
6. Compact and durable body, ideal for high-temperature and high-pressure applications
7. Options for swivel, plug, or needle disc
| Product Range | |
| Body Material: | Carbon Steel, Stainless Steel, Alloy Steel |
| Normal Diameter: | 1/2 - 2 Inch (DN15-DN50) |
| Pressure Range: | 800 - 4500 LB |
| End Connection: | BW, SW, NPT |
| Working Temperature: | -29°C - +525°C |
| Operation: | Manual or Actuated |
