API 6D Trunnion Ball Valve, 6 Inch, 2500 LB, A105N, RTJ

Name: API 6D Trunnion Ball Valve, 6 Inch, 2500 LB, A105N, RTJ
Brand: www.bossealvalves.com
SKU: 6BS25JA105-DIB1
Price: 0.01 USD
Availability: InStock
Rating: 5 (2 reviews)

Model Number: 6BS25JA105-DIB1

Key Specifications / Features

We Provide Trunnion Mounted Ball Valves, 3 PCS bodies, API 6D, 6 Inch, Class 2500 LB, Full Bore, RTJ Flanged, Gear Operation, ASTM A105N, DN150, PN420.

ASTM A105N Ball Valve API 6D Ball Valve DBB Ball Valve Fire Safe Ball Valve Trunnion Ball Valve

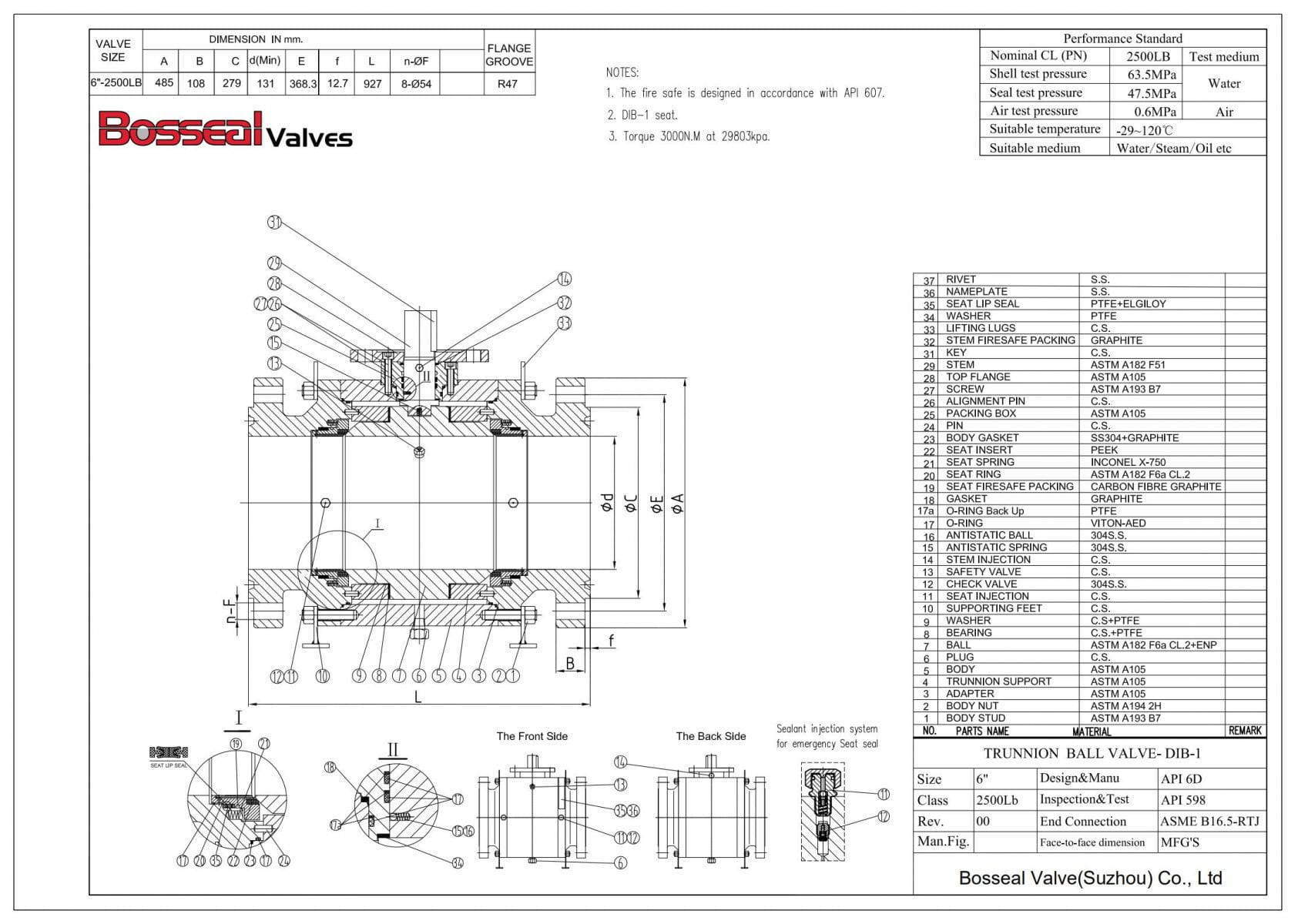

Detail Information

Product Item: Trunnion Mounted Ball Valve
Model No.: 6BS25JA105-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 2500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK, Lip Seal PTFE+UNS R30003
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed(DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 24 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
