API 6D Full Open Swing Check Valve, 24 Inch, 150 LB

Name: API 6D Full Open Swing Check Valve, 24 Inch, 150 LB
Brand: www.bossealvalves.com
SKU: 24SF1RWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 24SF1RWCB

Key Specifications / Features

Looking for a reliable supplier of full-open swing check valves? Look no further! Our valves are designed with the highest quality materials and are available in a variety of sizes and pressure ratings, including 24-inch valves with a class 150 LB rating, DN600 and PN20 specifications. Our valves are API 6D compliant and feature a full bore design, renewable seat, bolted bonnet, and RF end. Made from ASTM A216 WCB material, these valves are sure to provide reliable and long-lasting performance. Contact us today to learn more about our full open swing check valves and how we can help you meet your needs!

ASTM A216 WCB Check Valve Swing Check Valve 24 Inch Check Valve Class 150 LB Check Valve Bolted Bonnet Check Valve RF Check Valve PN20 Check Valve DN600 Check Valve Full Bore Check Valve API 6D Check Valve

Detail Information

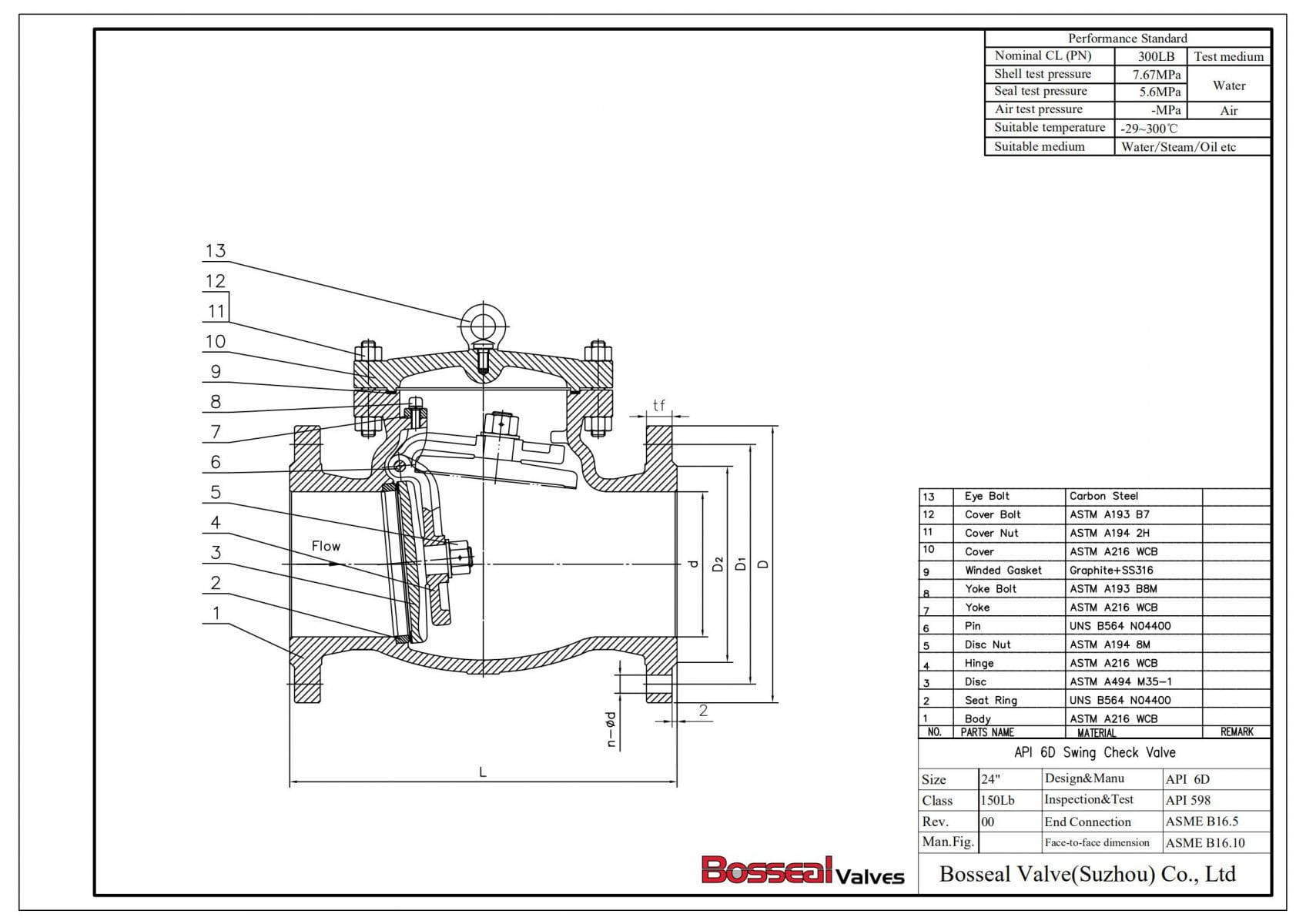

API 6D Full Open Swing Check Valve, 24 inch, 150 LB

Valve Description:
1841003 Swing Check Valve 24SF1RWCB
Design Standard: API 6D
Structure: Bolted Bonnet, Full Open
Nominal size: 24 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF (Raised Face)
Operation: /
Body Material: ASTM A216 WCB
Trim Material: Monel
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat, Full Open

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +425℃
Operation: /
