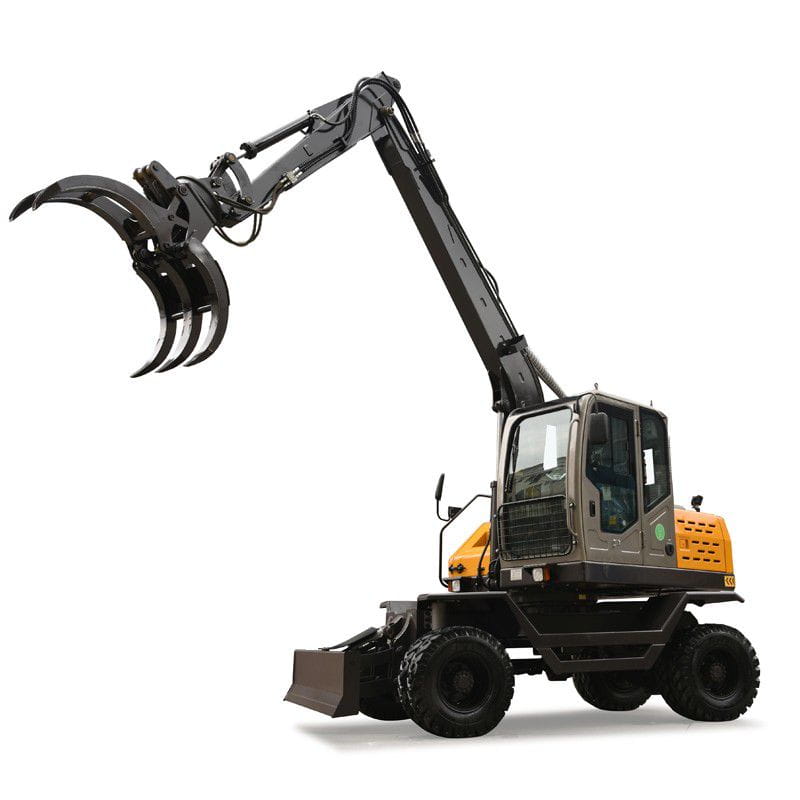

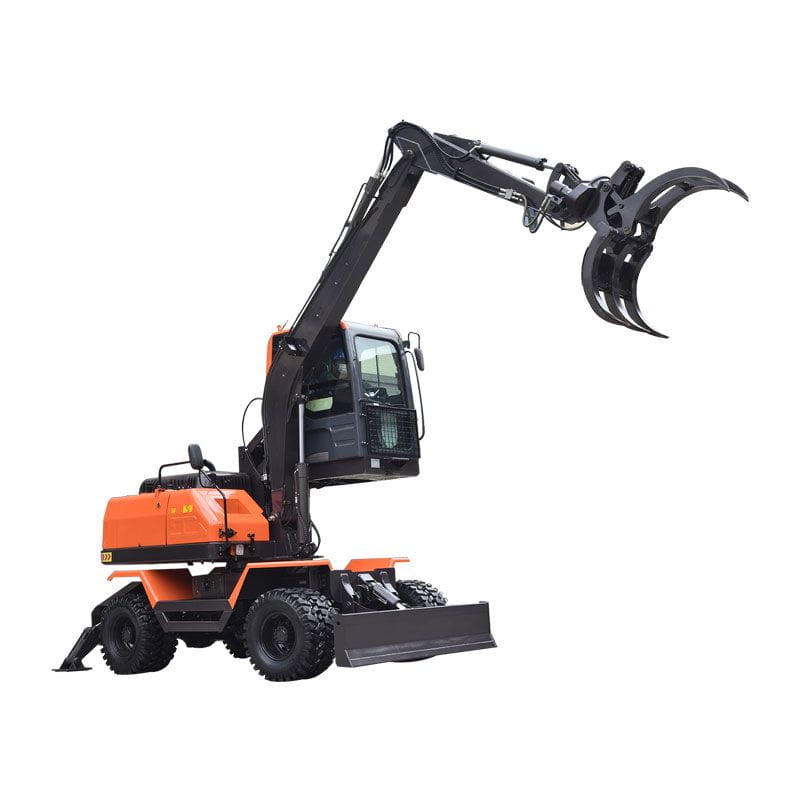

Wheeled Excavator with Forestry Wood Grapples for Sale
Key Specifications / Features
Introducing our range of Wheeled Forestry Grapple Excavators, where innovation meets efficiency. These excavators come equipped with an imported rotary deceleration system that significantly enhances the steering efficiency of the wood grabber. With a robust weight of 8.6 tons and powered by a 65 kW engine, these machines are designed to tackle tough tasks. Offering a maximum grabbing capacity of 500-800 kg, they are tailored for optimal performance in forestry operations.
Request a quote
Detail Information
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3670mm | ||||||||
| Arm length | 1860mm-2650mm | |||||||||
| Max radius of capture | 6000-7000mm | |||||||||
| Grab the biggest opening width | 1250mm | |||||||||
| Grab the minimum opening width | 80mm | |||||||||
| Maximum Grabbing Capacity | 500-800kg | |||||||||
| Grapple rotation angel | 360° | |||||||||
| Maximum Dumoing height | 4650-5100mm | |||||||||
| Back-End radius of gyration | 198mm | |||||||||
| Max lifting height of cab | 800mm | |||||||||
| Max extended distance of arm | 800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6450*2230*3050mm | ||||||||
| Wheel base | 2430mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8600kg | |||||||||
| Engine model | YN38GBZ/4102(Turbocharged) | |||||||||
| Rated Power | 65KW | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Max Traction force | 58.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.35m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
