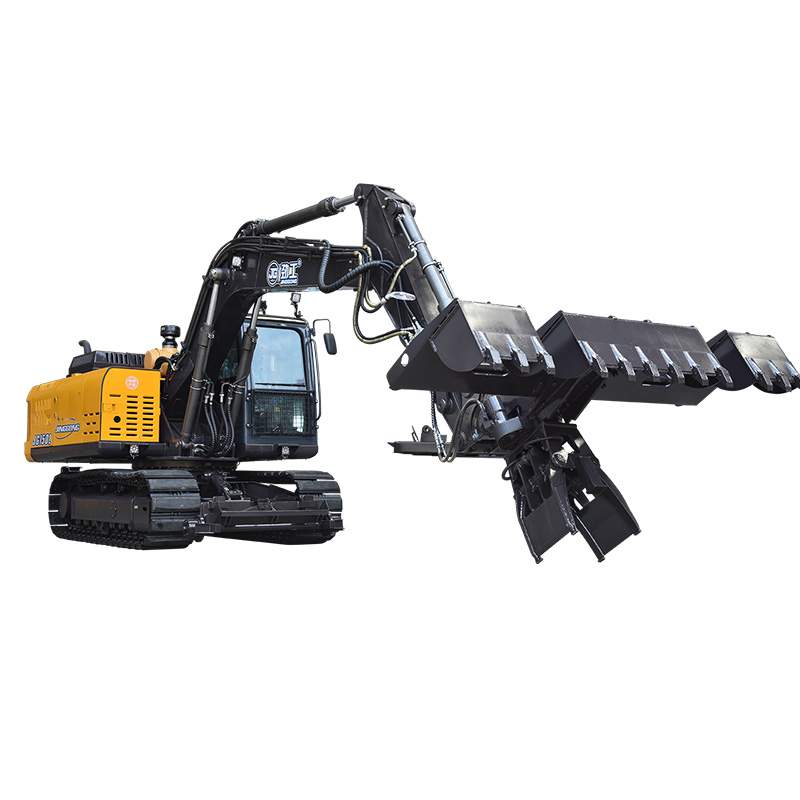

Brand New Hydraulic Sleeper Changers with Sleepers Grab
Model Number: WE-231007-HE-10
Key Specifications / Features
Introducing our brand-new hydraulic sleeper changers, weighing 8 tons and powered by 48-55 kW engines. These machines feature a max opening width of grab at 650 mm and can handle a maximum radius grabbing weight of 0.6 tons, making them ideal for efficient railway sleeper replacement.
Contact Supplier
Detail Information
| SPECIFICATIONS | ||||||||||
| SLEEPER CHANGER ATTACHMENT | Max. opening width of grab | 650mm | ||||||||
| Min. opening width of grab | 200mm | |||||||||
| Max. radius grabing weight | 0.5~0.6t | |||||||||
| Max. width of grab | 2800mm(customizable) | |||||||||
| DIMENSIONS | (Length*width*height) Transport dimensions | 6100*2800*2650mm | ||||||||
| Axle base | 2600mm | |||||||||
| Track gauge | 1570mm | |||||||||
| Width of crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min. ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | customizable | ||||||||
| Working efficiency | ≥40pcs/h | |||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8000kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated power | 48KW~55KW | |||||||||
| Rated speed | 2200r~2300r/min | |||||||||
