6.3 Ton Crawler Excavators, 0.25m³ Bucket, Max Reach 6000 mm
Key Specifications / Features

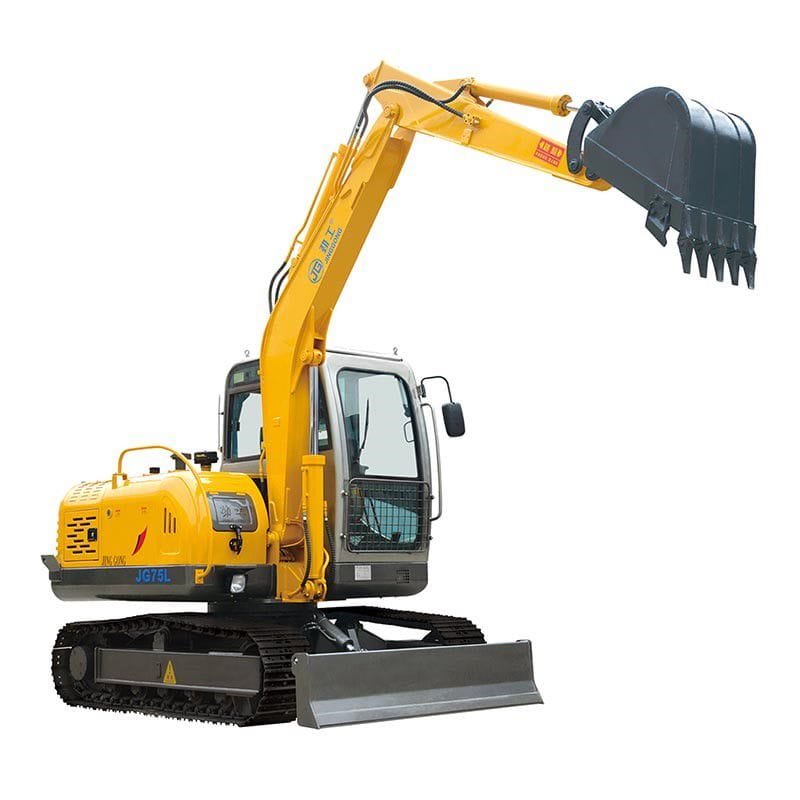

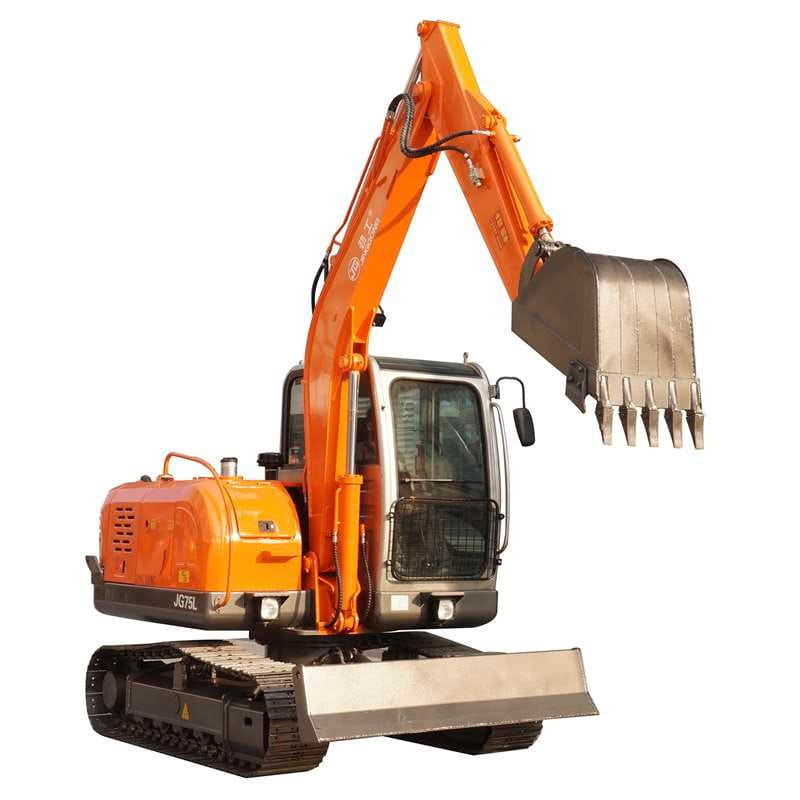

Welcome the AB75L Crawler Excavators - a formidable and high-performing selection. Model No.: AB75L, boasting an operating weight of 6300 kg and powered by a 58.8 kW engine, delivers exceptional results on any task.With a 1750 mm tail swing radius, it ensures excellent maneuverability. The 0.25 m³ bucket capacity enables efficient material handling. Adapt to different working conditions with a maximum travel speed of 4.5 km/h in high mode and 2.5 km/h in low mode. Experience a maximum digging reach of 6000 mm and a digging depth of 3280 mm, ideal for various excavation tasks. Conquer challenging terrains with a gradeability of 35°/70%. Rely on the AB75L as your trusted ally for top-notch construction performance.
Request a quote
Detail Information
Model No.: AB75L
Products: Crawler Excavators
Operating Weight: 6300 kg, 6.8 Ton
Engine Power: 58.8 kw
Tail Swing Radius: 1750 mm
Bucket Capacity: 0.25 m³
Max Travel Speed(high/low): 4.5/2.5 km/h
Max Digging Reach: 6000 mm, 6.00 Meters.
Max Digging Depth: 3280 mm, 3.28 Meters.
Gradeability: 35 °/70%
| Range of operation | |
| Boom length | 3030mm |
| Arm length | 1850mm |
| Maximum Digging Reach | 6000mm |
| Maximum Digging Depth | 3280mm |
| Maximum Digging Force | 45KN |
| Maximum Digging Height | 5400mm |
| Maximum Dumping Height | 4000mm |
| Back-end radius of gyration | 1750mm |
| Dimensions | |
| (Length*width*height) Transport Dimensions | 5200*2100*2650mm |
| Distance From Outer Edge of The Arm To Swing Motor | 3600mm |
| Wheel base | 2060mm |
| Track Gauge | 1570mm |
| Width Of Crawler | 400mm |
| Ground clearance of counterweight | 780mm |
| Min ground clearance | 280mm |
| Tech performance and specification | |
| Angle of rotation | 360° |
| Machine weight | 6300kg |
| Engine model | YUNNEI 4102 |
| Rated Power | 58.8KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 21Mpa |
| Hydraulic system flow | 120L/min |
| Variable piston pump | 28ml*2/r |
| Walking speed(High speed/low speed) | 4.5/2.5km/h |
| Grade Climbing ability | 70%/35° |
| Volume Of Bucket | 0.25m³ |
| Swing Overload Pressure | 16Mpa |
| Full circle swinging time | 5.5s |
| Fuel Quantity | ≥4L/h |
| Capacity Of The Fuel Tank | 110L |
| Hydraulic Tank Capacity | 110L |
