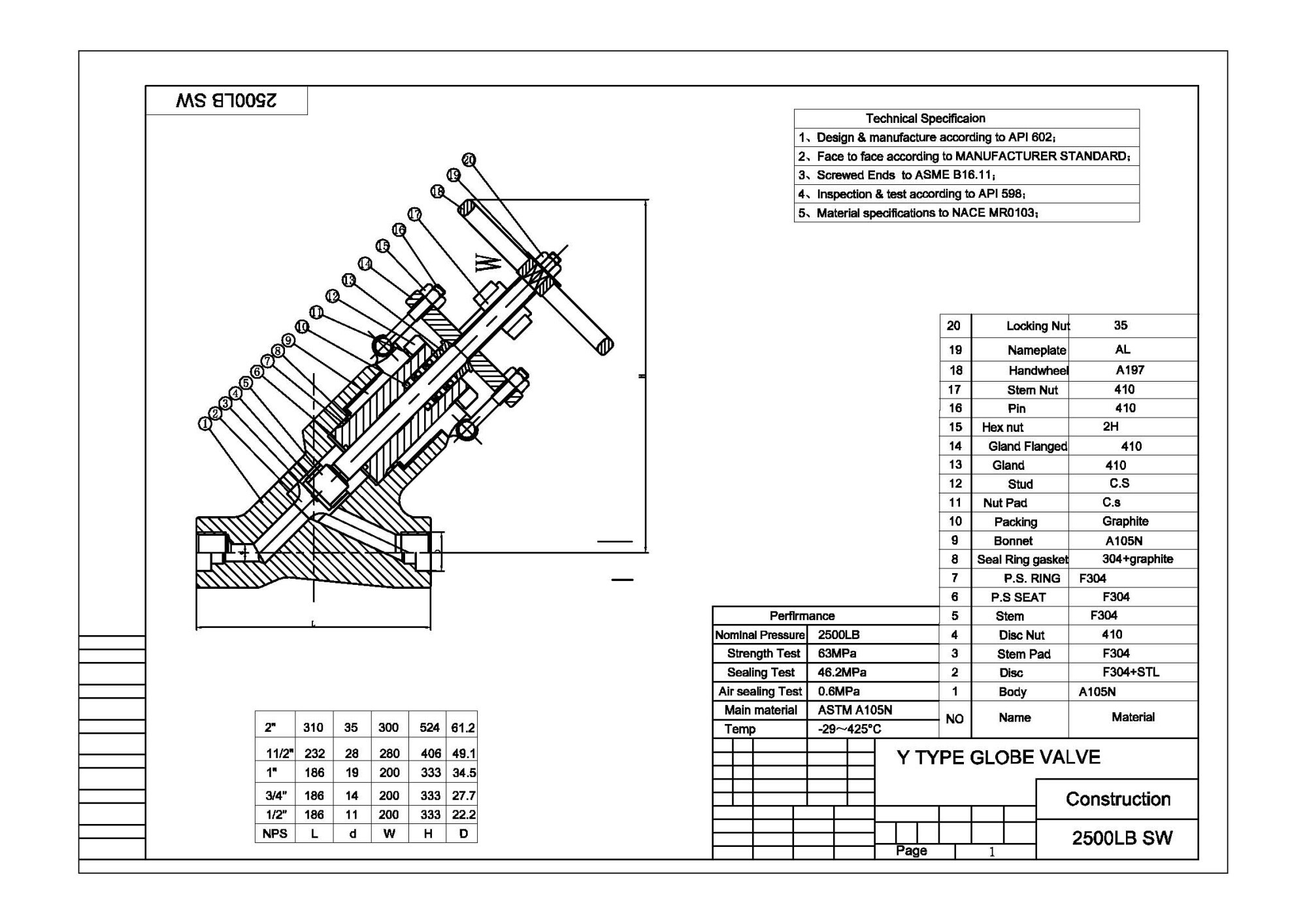

Y-Pattern Globe Valve, ASTM A105N, API 602, 1 Inch, 2500 LB
Key Specifications / Features
China-based plant specializing in Y-pattern globe valves compliant with API 602, BS 5352, and ASME B16.34 standards. Crafted from ASTM A105N, suitable for high-pressure environments up to Class 2500 LB and PN420. Features a 1-inch size, socket weld end connections, and handwheel actuation.
Request a quote
Detail Information
Standard: API 602, BS 5352, ASME B16.34
Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
End Connection: SW, BW, RF, RTJ
Operating: Handwheel
Test & Inspection: API 598
Socket welded end: ANSI B16.11
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – +560℃
Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
End Connection: SW, BW, RF, RTJ
Operating: Handwheel
Test & Inspection: API 598
Socket welded end: ANSI B16.11
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – +560℃
Send your message to this supplier
FAQs
OS&Y stands for Outside Screw and Yoke. This design places the threaded stem outside the valve body, with the yoke supporting the stem. It allows users to visually verify whether the valve is open or closed by observing the stem’s position.
OS&Y gate valves are commonly used in fire protection systems, including sprinklers, hydrants, and standpipes, due to their reliability and clear open/close indication.
