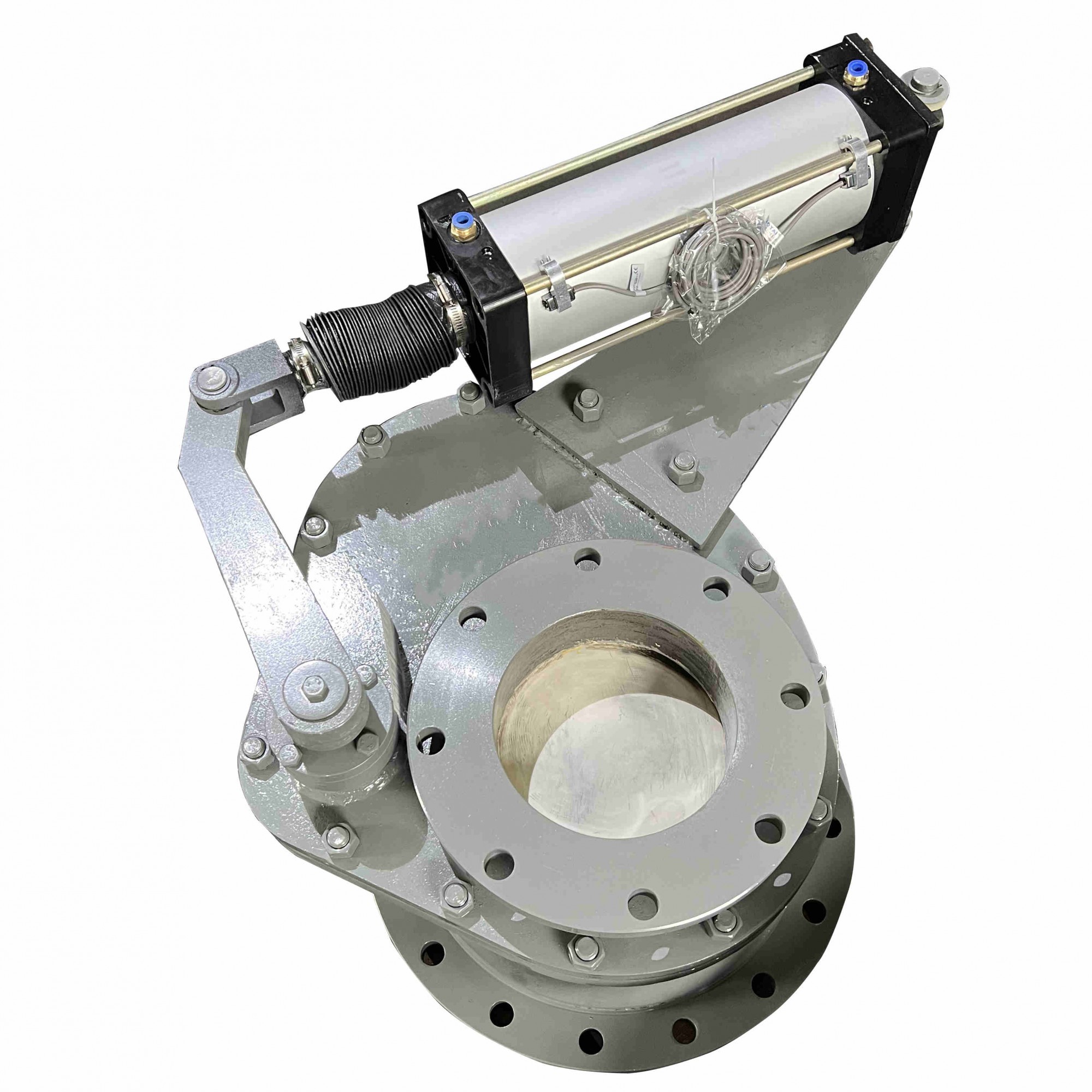

Ceramic Lined Rotary Valve, ASTM A216 WCB, DN80, PN10, RF
Key Specifications / Features
As a premier Ceramic Lined Rotary Valve Manufacturer, we take pride in presenting our high-performance valve engineered with precision. Crafted from robust Carbon Steel ASTM A216 WCB, this valve ensures durability and resilience in demanding environments. With a DN80 size and PN10 pressure rating, our valve is designed to meet industry standards, providing reliable operation.
Request a quote
Detail Information
Design: GB/T 12224.
Body: ASTM A216 WCB
Nominal size: DN80.
Nominal class: PN10.
End Connection: RF flange.
Face to face: MFG’S.
Test and inspection:GB/T 9092.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: PN10-PN16.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: DN80.
Nominal class: PN10.
End Connection: RF flange.
Face to face: MFG’S.
Test and inspection:GB/T 9092.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: PN10-PN16.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
| Product | Ceramic rotary valve. |
| Nominal diameter | 2 Inch - 16 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | PN10-PN16. |
| Material | Carbon steel. |
| Design standard | GB/T 12224. |
| Face to face | MFG'S. |
| Connection end | Flange. |
| Test standard | GB/T 9092. |
| Package | Plywood |
| Application | Dry ash systems, and storehouse pumps, also can be used in mining, paper making, chemical and other kinds of dry dust, water, etc. |
| Model | Z648TC |
