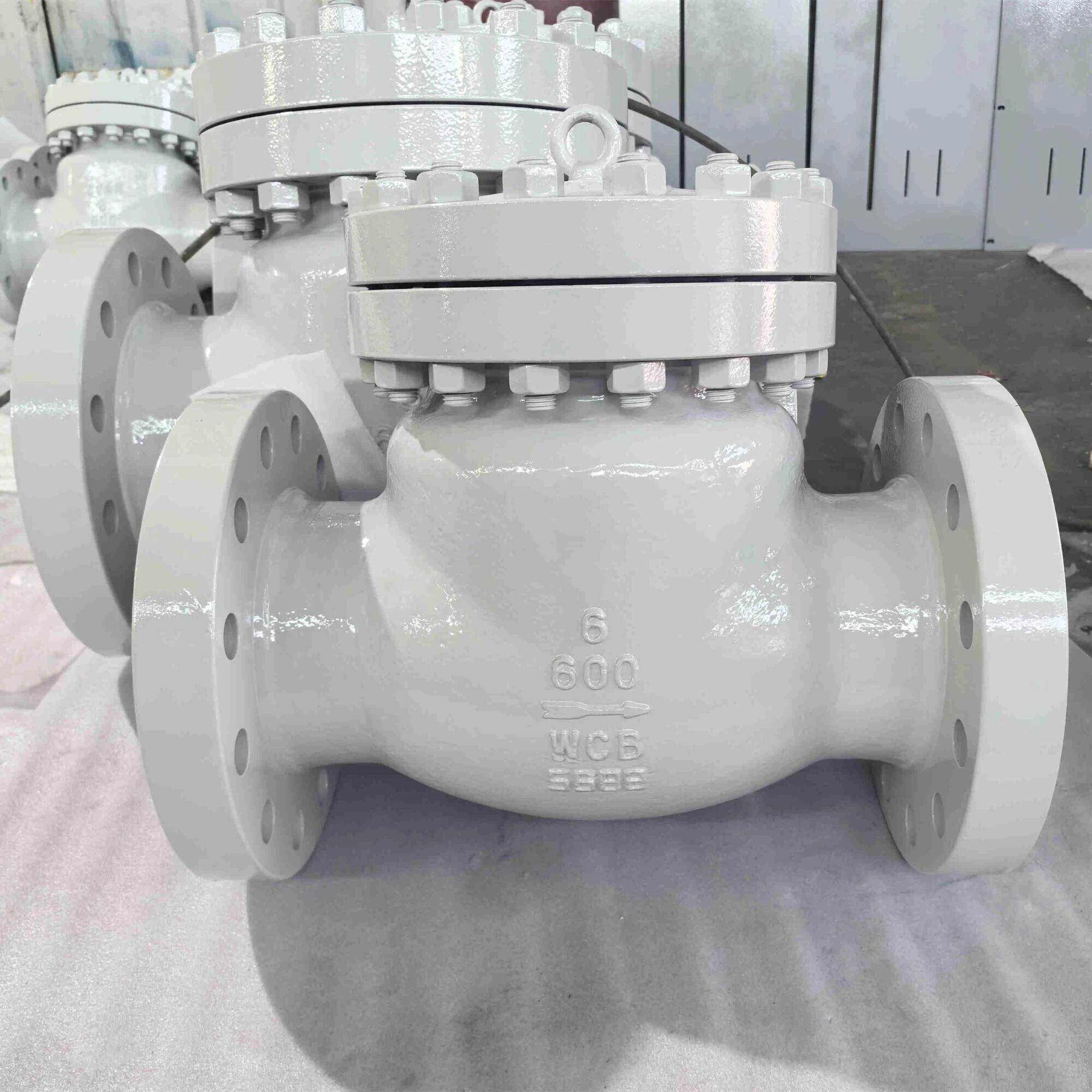

BS 1868 Swing Check Valve, ASTM A216 WCB, 12 Inch, 600 LB

Name: BS 1868 Swing Check Valve, ASTM A216 WCB, 12 Inch, 600 LB
SKU: WV-231221-ASCV-04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover top-tier fluid control with our BS 1868 Swing Check Valve, expertly produced to meet the highest standards. This 12-inch valve operates seamlessly in Class 600 LB environments, crafted from durable ASTM A216 WCB. The Bolted Bonnet design ensures secure and efficient performance. Designed for optimal functionality, this swing check valve features an Integral Seat, providing reliable sealing.

Request a quote

Detail Information

Valve description:

Swing check valve, bolted bonnet, integral seat, Full Port, raised flanged.
Design: BS 1868.
Body: ASTM A216 WCB
Nominal size: 12 Inch.
Nominal class: 600 LB.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 2 - 20 Inch (DN50 - DN500).
End connection: Flange (RF, RTJ), Butt Welding.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Swing check valve.
Nominal diameter	2 Inch - 20 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon Steel.
Design standard	BS 1868.
Face to face	ASME B16.10.
Connection end	Flange, Butt Welding.
Test standard	API 598.
Package	Plywood
Application	water, oil and gas.
