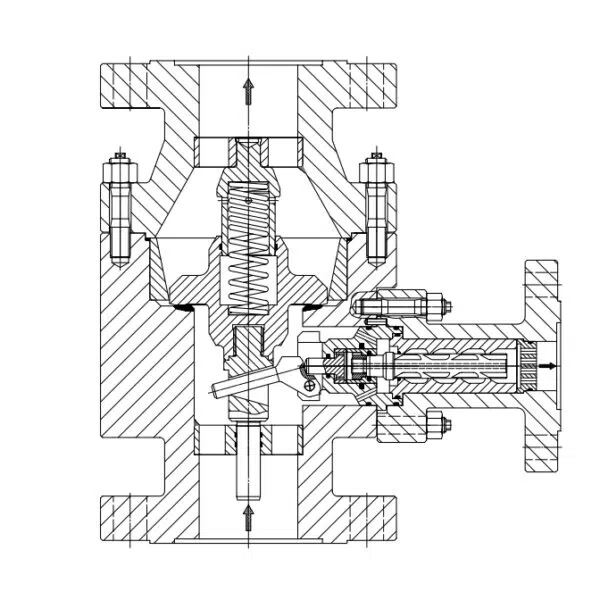

Automatic Recirculation Control Valve, ASTM A105, 1-20 Inch
Key Specifications / Features
Leading the industry, our Chinese manufacturing facility specializes in crafting high-quality Automatic Recirculation Control Valves. Constructed from ASTM A105, ASTM A217 WC6, and ASTM A352 LCB materials, these valves are available in sizes from 1 to 20 inches, meeting Class 150-2500 LB specifications for superior performance.
Request a quote
Detail Information
Size: 1-20 Inch, DN25-DN500
Pressure: Class 150-2500 LB, PN20-PN420
Body Materials: ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3, F304, F316
Pipe connection: flange
Completely mechanical structure, relying on its own medium to control the valve, energy-saving, and low cost
The main circuit has a check valve function
With flow sensor function
The bypass is a multi-stage eddy current decompression structure, which is resistant to cavitation and erosion
Leakage level: ANSI V
Pressure: Class 150-2500 LB, PN20-PN420
Body Materials: ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3, F304, F316
Pipe connection: flange
Completely mechanical structure, relying on its own medium to control the valve, energy-saving, and low cost
The main circuit has a check valve function
With flow sensor function
The bypass is a multi-stage eddy current decompression structure, which is resistant to cavitation and erosion
Leakage level: ANSI V
