ASTM A216 WCB Ball Valve, API 6D, 10 Inch, Class 300 LB, RF
Model Number: WV-240103-TMBV-01
Key Specifications / Features

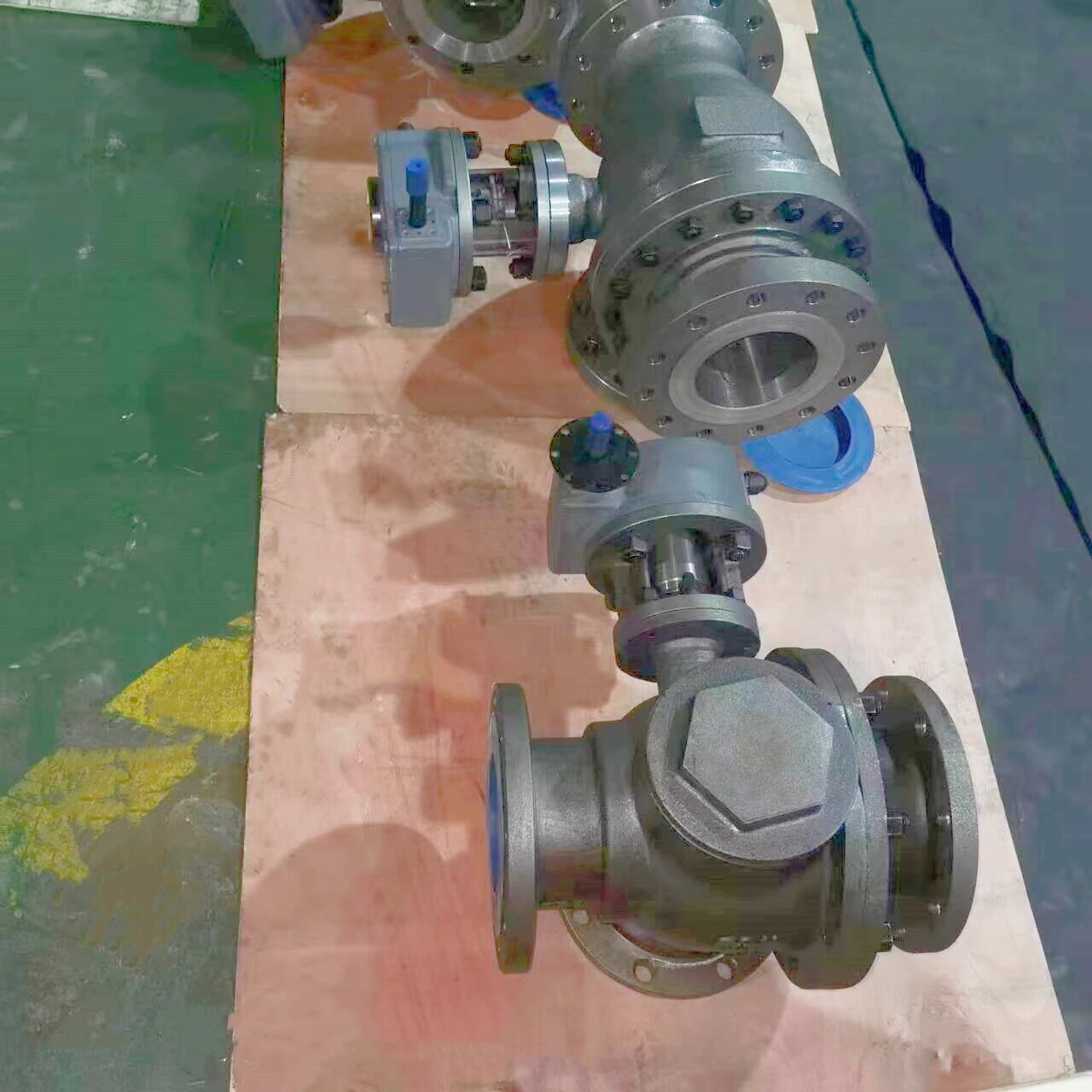

Discover precision with our Carbon Steel Ball Valve, crafted to perfection with ASTM A216 WCB standards. This 10-inch, Class 300 LB valve features a Bolted Bonnet, Three-piece design, RF End, and Gear Operation. Engineered for excellence, it ensures reliability and durability. DN250, PN50 specifications enhance its performance, making it an ideal choice for your industrial needs.
Detail Information
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 10 Inch.
Nominal class: 300 LB.
End Connection: RF.
OPERATION: GEAR
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Body: ASTM A216 WCB
Nominal size: 10 Inch.
Nominal class: 300 LB.
End Connection: RF.
OPERATION: GEAR
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
| Product | Ball valve. |
| Nominal diameter | 1/2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D. |
| Face to face | ASME B16.10. |
| OPERATION | GEAR |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
