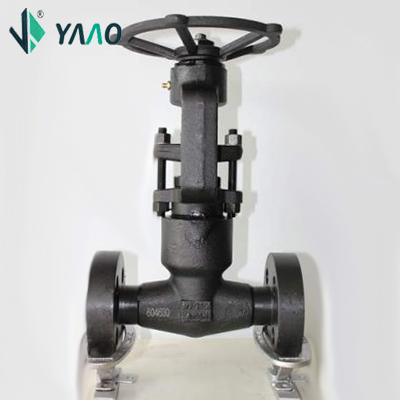

ASTM A105N Globe Valve, BS 5352, ASME B16.34, 2 Inch, 1500 LB
Key Specifications / Features
Our globe valves, manufactured in accordance with BS 5352 and ASME B16.34 standards, are built to excel in demanding environments. Crafted from high-quality forged steel ASTM A105N, these valves ensure robust performance and longevity. With a size of 2 inches and a Class rating of 1500 LB, they are engineered to handle high-pressure applications with ease.
Request a quote
Detail Information
Standard: BS 5352, ASME B16.34
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
0End Connection: BW, SW
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -196℃ – 560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
0End Connection: BW, SW
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -196℃ – 560℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
