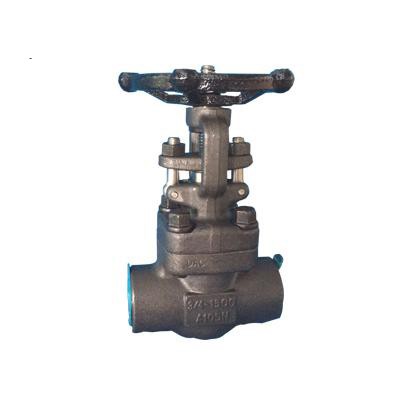

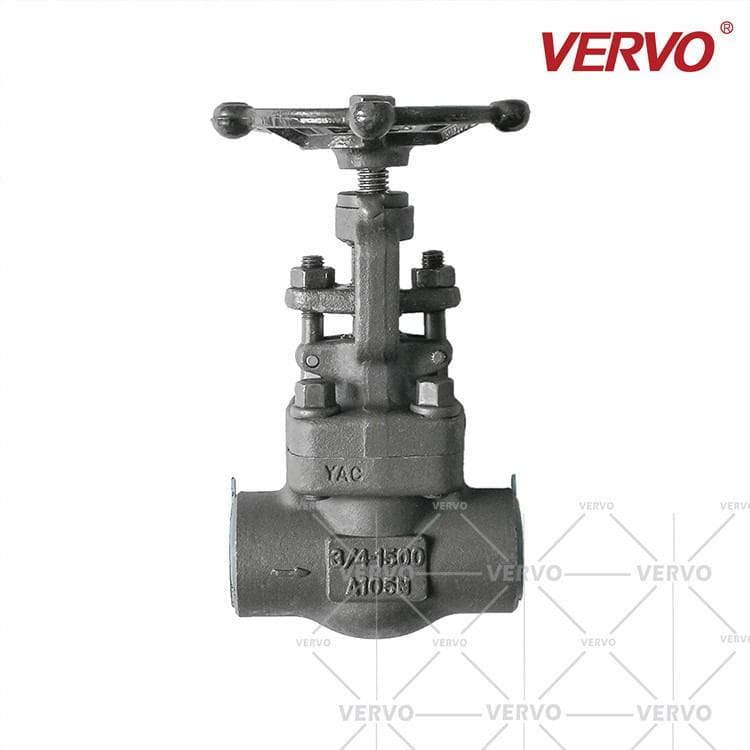

ASTM A105N Globe Valve, API 602, 3/4 Inch, 1500 LB, OS & Y

As your trusted API 602 and BS 5354 Globe Valve supplier, we present a high-performance solution tailored to meet your fluid control needs. Manufactured with precision, our valve features a compact 3/4-inch size, ideal for applications demanding reliability. Crafted from Carbon Steel ASTM A105N, it ensures durability and efficiency in diverse industrial settings. The Outside Screw & Yoke design, coupled with a Bolted Bonnet, enhances operational security and facilitates easy maintenance.

Name: Carbon Steel ASTM A105N Gate Valve
Size: 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Material: Carbon Steel ASTM A105N
Media: Oli, Gas, Water
Standard: API 602, BS 5354
Temperature Of Media: -54℃ - 232℃
Feature: Outside Screw & Yoke (OS & Y), Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

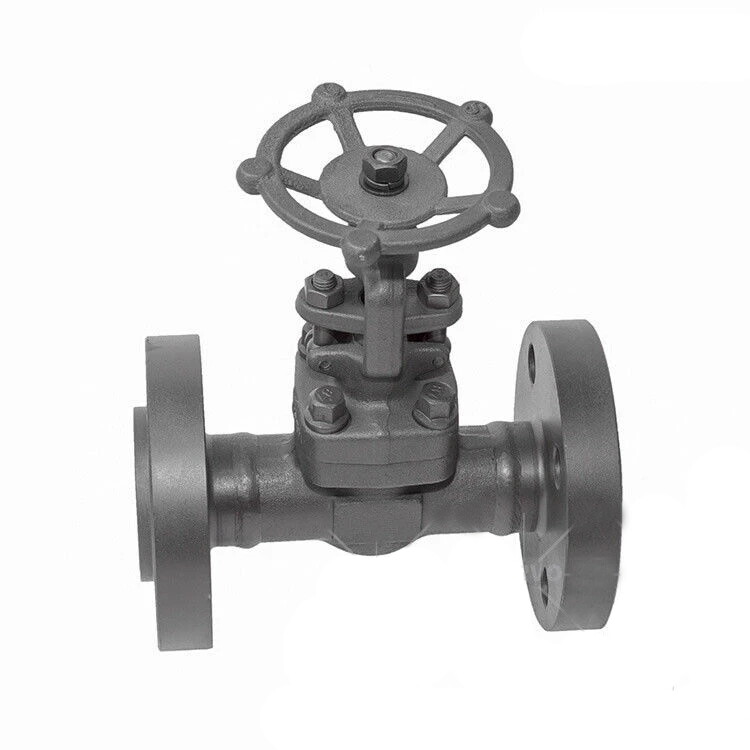

VERVO Forged Steel Globe Valves are compact, sturdy and ideal for high-pressure and high-temperature applications. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.

Product Range

Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 800 to Class 2500
End Connection: SW, NPT, RF, or BW
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Material: Carbon Steel, Forged Steel, Alloy 20, Monel, Inconel, Hastelloy
