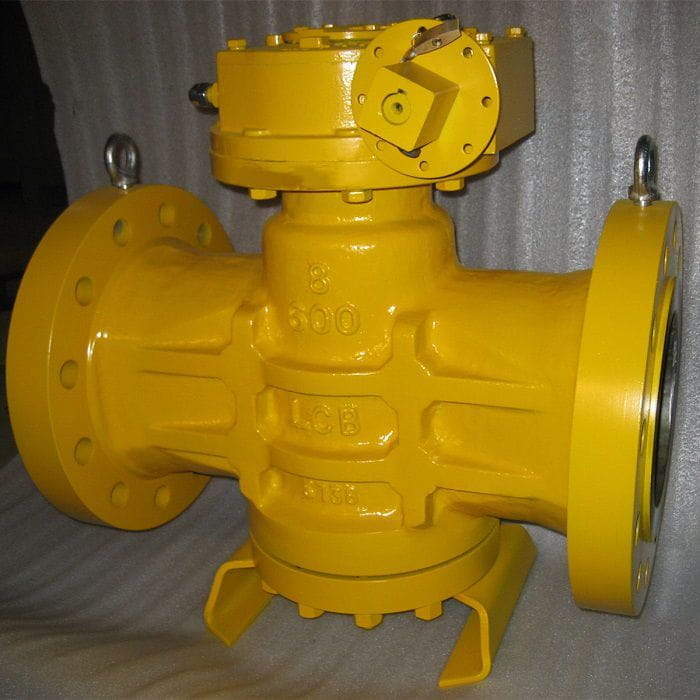

API 599 Lubricated Plug Valve, ASTM A352 LCB, 8 Inch, 600 LB
Key Specifications / Features
Discover excellence with our ASTM A352 LCB Lubricated Plug Valve, meticulously designed in China. This valve, built to API 6D and API 599 standards, boasts an 8-inch size, Class 600 LB rating, and DN200 dimensions. Featuring a reliable bolted bonnet, RF flange end, and efficient lever operation, it's your go-to solution for optimal control in various applications.
Request a quote
Detail Information
Design: API 6D, API 599
Body: ASTM A352 LCB
Nominal size: 8 Inch.
Nominal class: 600 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -45℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A352 LCB
Nominal size: 8 Inch.
Nominal class: 600 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -45℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -45℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D, API 599 |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Operation | Lever, Gearbox |
