3 Way L Port Ball Valve, API 6D, ASTM A105, 10 Inch, 600 LB
Key Specifications / Features
Discover superior fluid control with our Three-Way L Port Ball Valve. Engineered to ASTM A105 standards, this valve boasts a 10-inch size, Class 600 LB rating, Trunnion Mounted design, and API 6D compliance. With DN250, PN100, RF Flanged End, and Face to Face ASME B16.10 specifications, it ensures precise and reliable fluid management for diverse applications.
Request a quote
Detail Information
Design Standard: API 6D
Body Material: ASTM A105
Nominal Diameter: 10 Inch, DN250
Pressure: Class 600 LB, PN100
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: 3-way trunnion ball valve, Full Bore Reduce Bore L Port
Product Range
Size: 1/2-10 Inch (DN15-DN250)
Rating: 150-300 LB (PN16-PN40)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
End Connection: RF, BW, RTJ
Design & manufacture: API 6D, API 608, ISO 17292
Face-to-face: API 6D, ASME B16.10
End Connection: ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection: API 6D, API 598
Fire safe design: API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Body Material: ASTM A105
Nominal Diameter: 10 Inch, DN250
Pressure: Class 600 LB, PN100
End Connection: RF Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: 3-way trunnion ball valve, Full Bore Reduce Bore L Port
Product Range
Size: 1/2-10 Inch (DN15-DN250)
Rating: 150-300 LB (PN16-PN40)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
End Connection: RF, BW, RTJ
Design & manufacture: API 6D, API 608, ISO 17292
Face-to-face: API 6D, ASME B16.10
End Connection: ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection: API 6D, API 598
Fire safe design: API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848

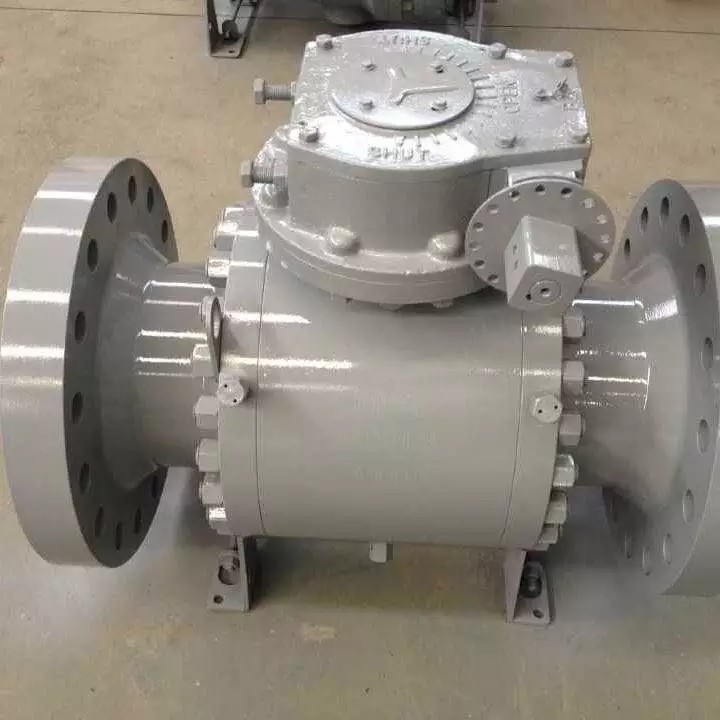

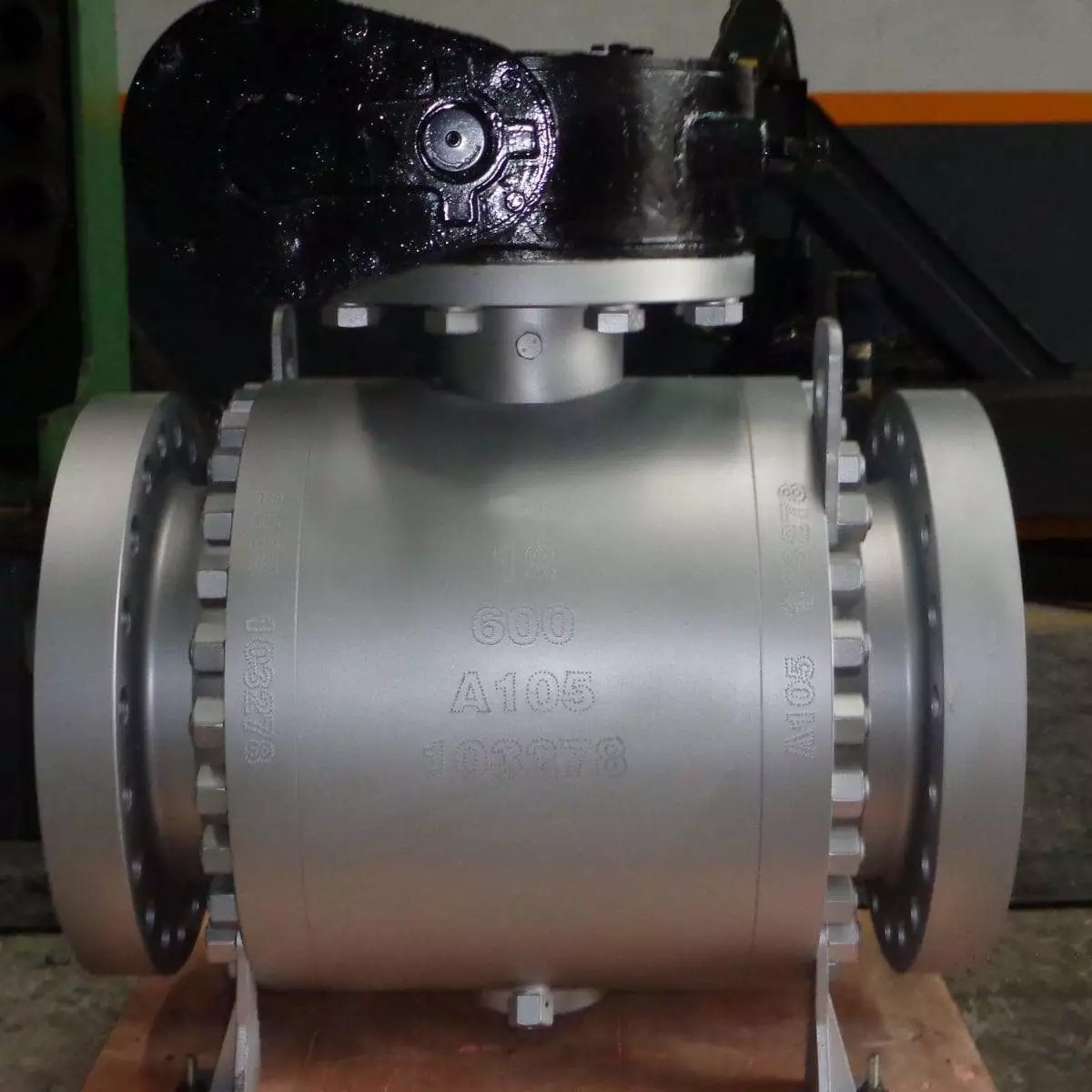

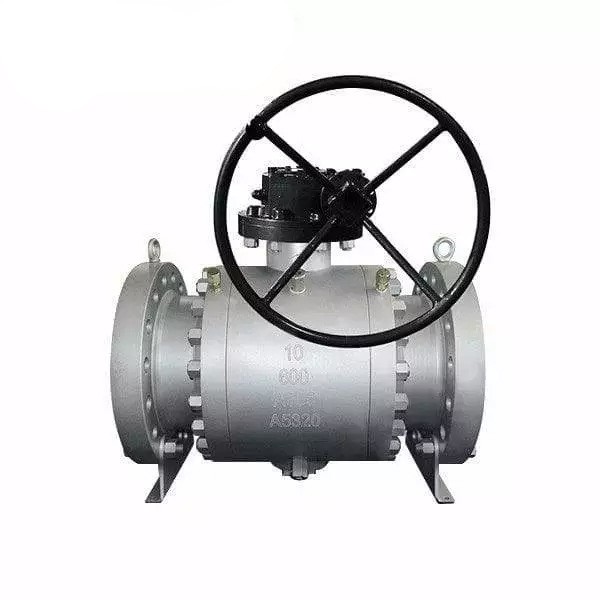

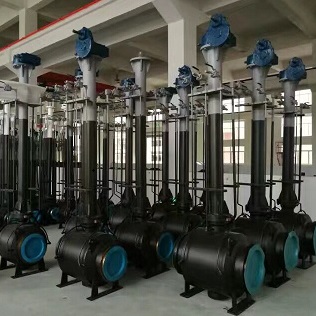

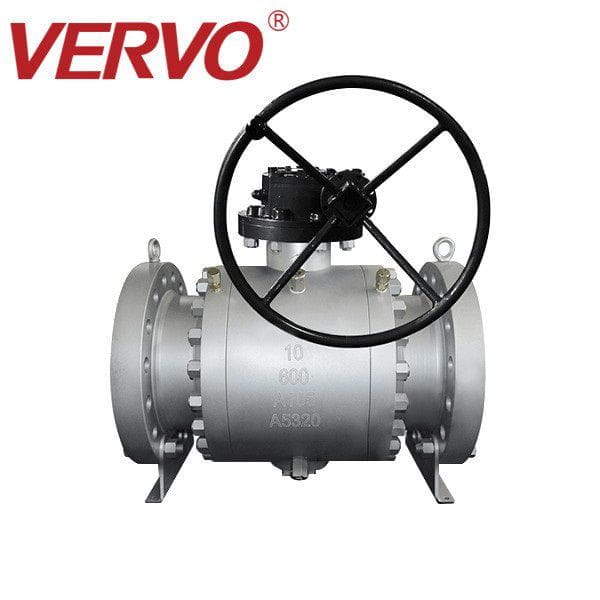

Similar Products
