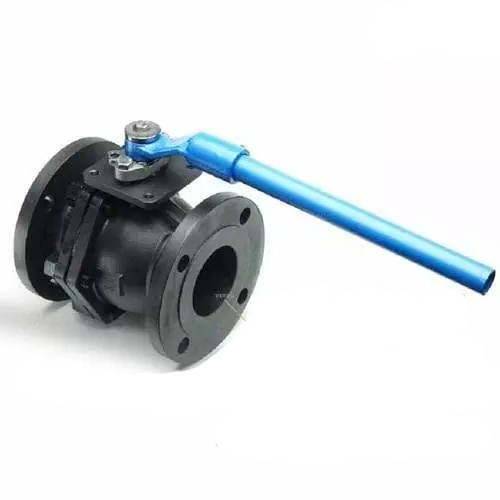

2-PC Ball Valve, ASTM A216 WCB, 3 Inch, 300 LB, API 6D, RF
Model Number: WV-240402-TMBV-02
Key Specifications / Features
Introducing our premium Soft Seal Ball Valve, meticulously crafted in China to meet the highest standards of performance and reliability. This two-piece valve, constructed from ASTM A216 WCB steel, boasts exceptional durability and resilience. With a compact 3-inch design and a robust Class 300 LB rating, it ensures seamless operation even in demanding environments.
Detail Information
Design: API 6D.
Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 300 LB, PN50
End Connection: RF.
Operation: Gear
Face to face: ASME B16.10.
Test and inspection: API 598.
Feature: Bolted Bonnet, Two-pieces
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +400℃.
Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 300 LB, PN50
End Connection: RF.
Operation: Gear
Face to face: ASME B16.10.
Test and inspection: API 598.
Feature: Bolted Bonnet, Two-pieces
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +400℃.
