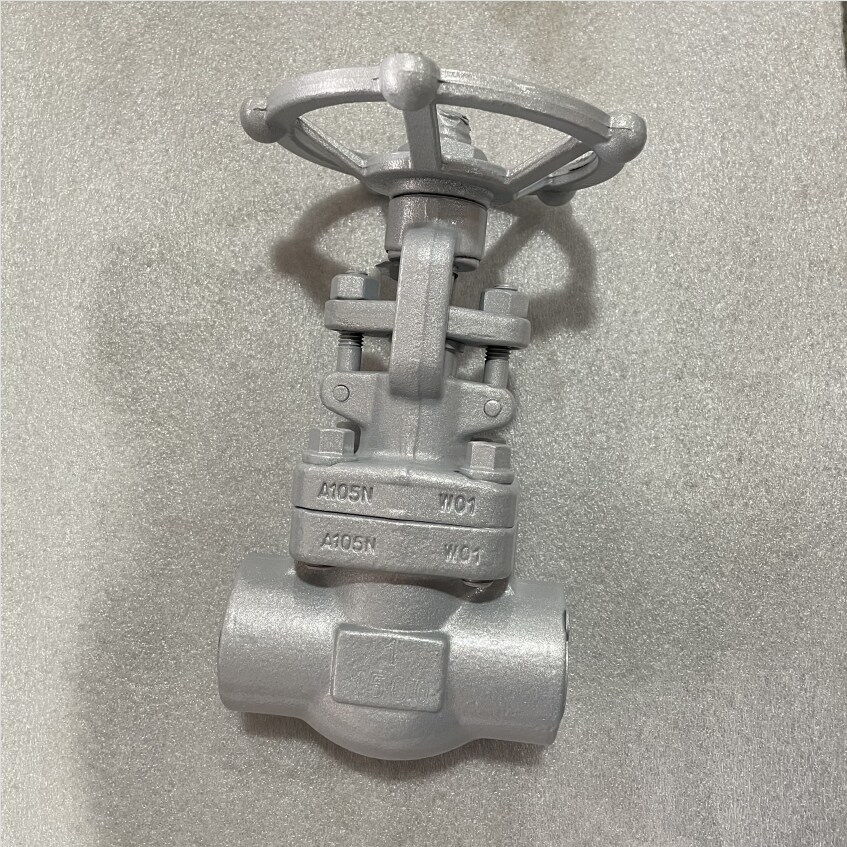

Welded Bonnet Gate Valve, ASTM A105N, 1 Inch, 1500 LB, BW

Name: Welded Bonnet Gate Valve, ASTM A105N, 1 Inch, 1500 LB, BW
Brand: www.vervovalve.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Find a trusted supplier of welded bonnet gate valves made from Carbon Steel ASTM A105N. These valves comply with API 602 standards and are designed for high-pressure applications. Available in a 1-inch size with a pressure rating of 1500 LB, DN25, and PN250. Equipped with nipples on both sides and featuring butt weld ends for secure connections. Choose these reliable gate valves for your industrial needs. Order now for top-quality products.

BW Gate Valves Carbon Steel Gate Valves Class 1500 LB Gate Valves ASTM A105N Gate Valves 1 Inch Gate Valve DN25 Gate Valve PN250 Gate Valve API 602 Gate Valve Welded Bonnet Gate Valve

Detail Information

Gate valve, carbon steel, welded bonnet, NPS 1, 1500 LB, A105N, Nipples on both side.

Valve description:
Gate valve, carbon steel, welded bonnet.
Design: API 602.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 1500 LB.
End Connection: BW.
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 3 Inch (DN15 - DN80).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Gate valve.
Nominal diameter	1/2 Inch - 3 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon steel.
Design standard	API 602.
Face to face	MFG'S.
Connection end	BW, Flange.
Test standard	API 598.
Package	Plywood
Application	The oil and gas industry
