Monolithic Gate Valve, ASTM A182 F304, 1IN, CL150, API 602
Key Specifications / Features
We Provide Monolithic Gate Valves, Forged Stainless Steel ASTM A182 F304 Gate Valves, 1 Inch, DN25, Class 150 LB, PN20, RF Flanged, API 602, BS 5352, ISO 15761, ASME B16.34.
Detail Information

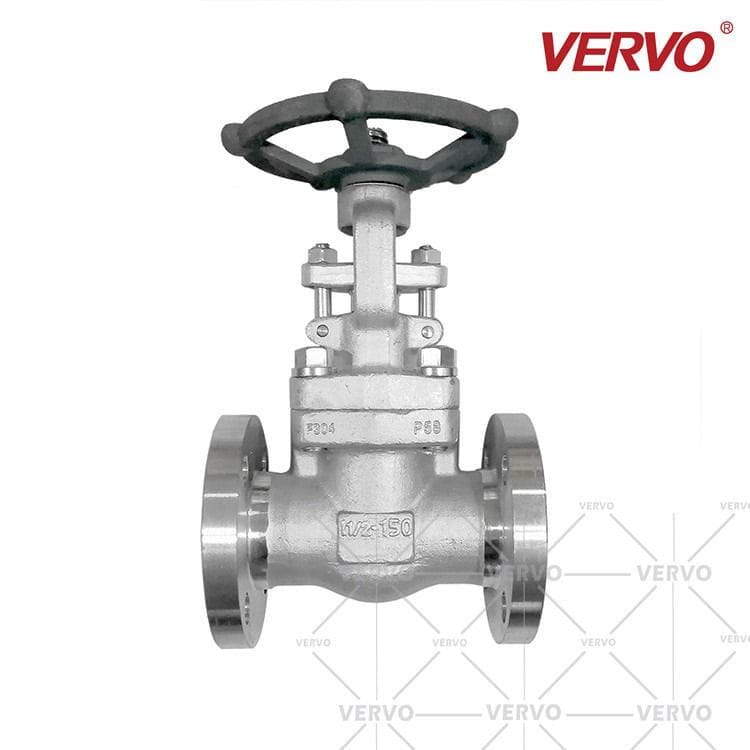

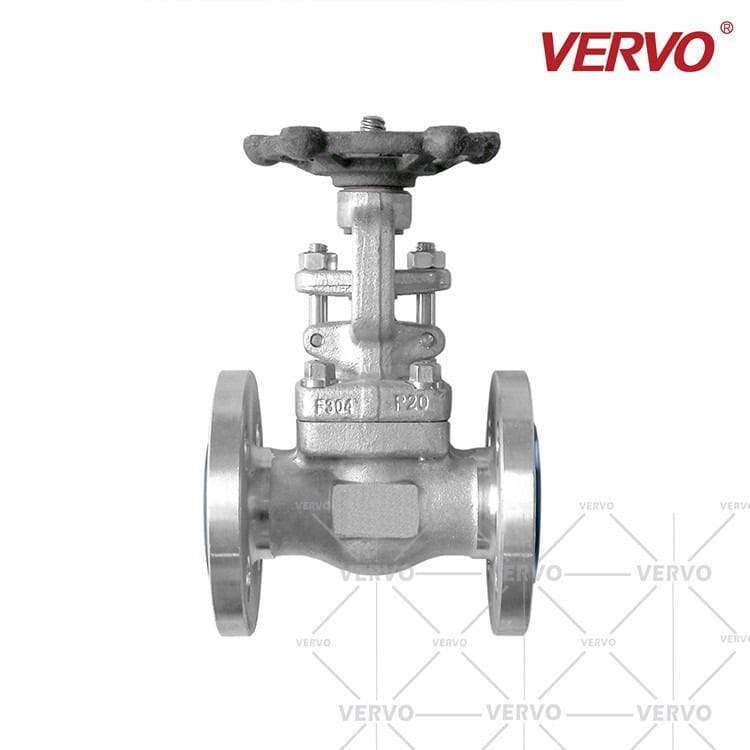

Monolithic Forged Stainless Steel F304 Gate Valve
Name: Forged Gate Valve
Media: Oli, Gas, Water
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304
End Connection: RF Flanged
Operation: Handwheel
Temperature Of Media: -54℃ - 232℃
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150 - 800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, ISO 15761, ASME B16.34, GOST, JIS, DIN
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Material: Forged Steel, Stainless Steel
Name: Forged Gate Valve
Media: Oli, Gas, Water
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304
End Connection: RF Flanged
Operation: Handwheel
Temperature Of Media: -54℃ - 232℃
| Model number | Z41Y-150LB |
| Item | Gate Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001 |
| Connection form | Flanged |
| Body material | Stainless Steel |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150 - 800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, ISO 15761, ASME B16.34, GOST, JIS, DIN
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Material: Forged Steel, Stainless Steel
