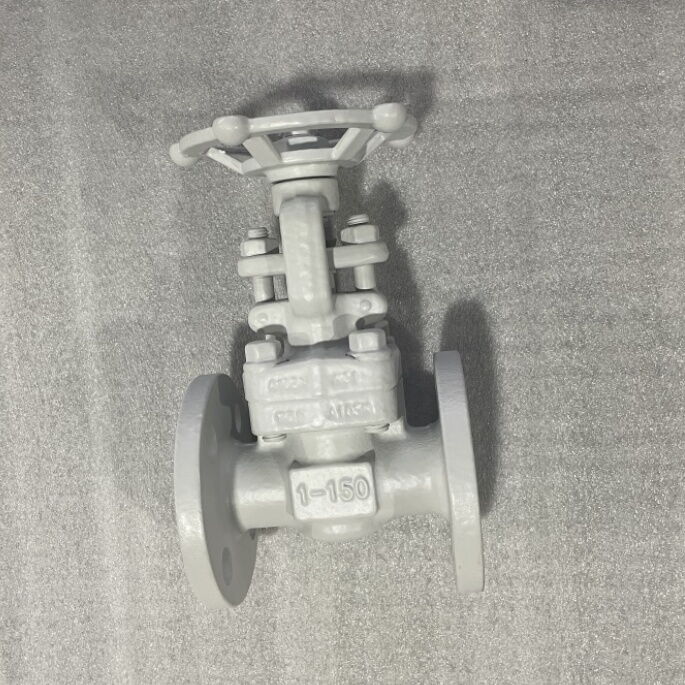

Low Temperature Gate Valve, CL150, 1 IN, A105N, API 602

Name: Low Temperature Gate Valve, CL150, 1 IN, A105N, API 602
SKU: GTV-20241106-06
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a trusted supplier of carbon steel gate valves in China, we provide high-quality, low-temperature valves built to API 602 standards. Constructed from ASTM A105N carbon steel, these 1-inch valves are rated for Class 150 LB and are designed with a bolted bonnet and rising stem for reliable, easy operation. Featuring raised face (RF) flanged ends, these valves ensure secure, leak-resistant connections, making them an ideal choice for low-temperature applications requiring durability and precise flow control.

Request a quote

Detail Information

API 602 ASTM A105N Gate Valve, Bolted Bonnet, RF Flanged.

Valve Description:
Gate Valve, Bolted Bonnet, Rising Stem, Reduce Bore.
Design Standard: API 602
Body Material: ASTM A105N
Nominal Size: 1 Inch, DN25
Nominal Class: Class 150 LB, PN20
End Connection: RF
Face to Face: ASME B16.10
Test and Inspection: API 598

Product Range:
Body Material: Carbon steel
Normal Diameter: 1/2 - 2 Inch (DN15 - DN50).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB.
Working Temperature: -29°C - +425°C.

Technical Parameters and Characteristics

Product Item	Gate Valve
Nominal Diameter	1/2 Inch - 2 Inch
Design Temp.	Down to -25°C
Design Pressure	Class 150 LB - 2500 LB
Material	Carbon Steel
Design Standard	API 602
Face to Face	ASME B16.10
Connection End	BW, Flanged
Test Standard	API 598
Package	Plywood
Application	Water, steam, air and oil
Certificate	CE, ISO 9001, ISO 14001, TS
