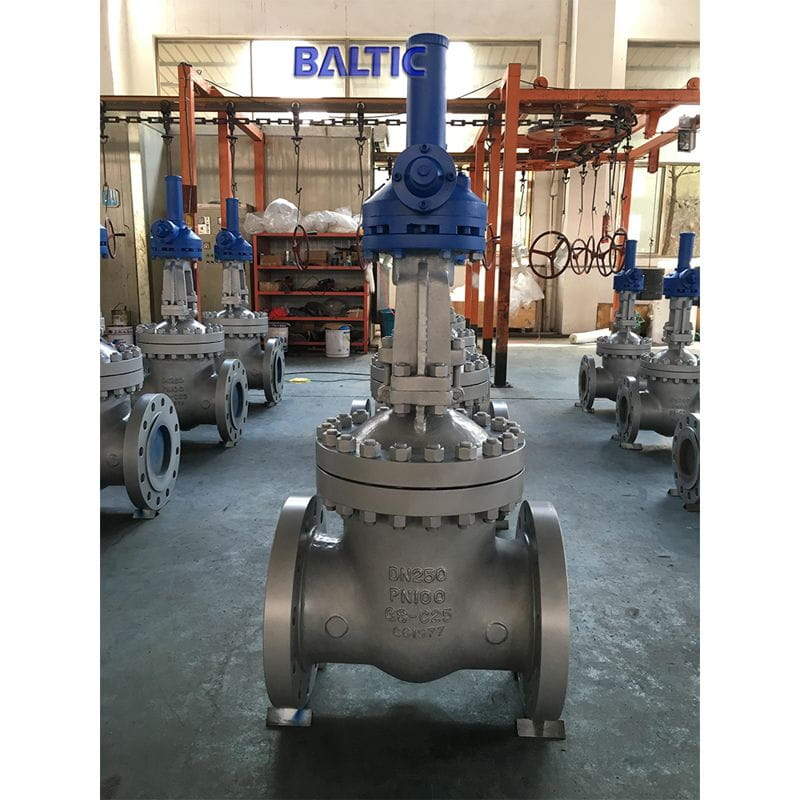

Flex Wedge Gate Valve, GS-C25, 8 Inch, 600 LB, DN200, PN100

Full Bore GS C25 RF Flanged Cast Steel Gate Valve

Name: Casting Steel 200mm Gate Valve
Material: Cast Steel
Connection: RF Flange, RTJ Flange, BW

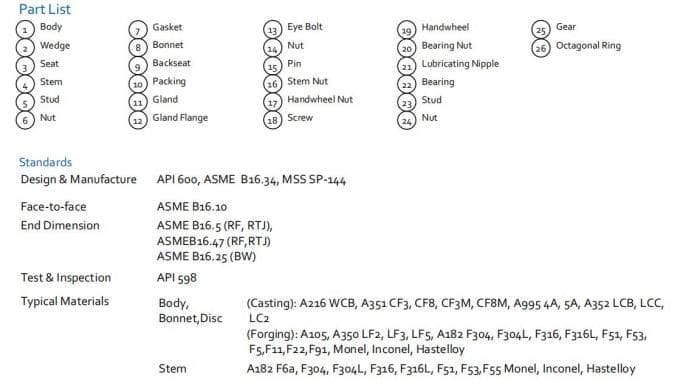

Standard: API 600, API 603, DIN, JIS, GOST, ISO
Size: 8 Inch, DN200
Pressure: Class 600 LB, PN100
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
High Light: Full Bore, GS C25 flexible wedge type, OS & Y

Product Range

Size: 2 - 48 Inch, DN50-DN1200
Pressure: Class 150-2500 LB

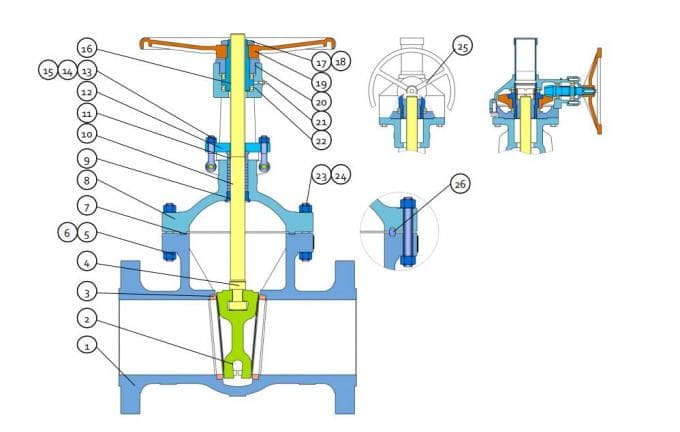

Feature

1. Bolted bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.
2. Forged body can also be provided upon special request.
3. Unlike forging, casting uses the liquid form of metal to create valves. These metals are melted into a molten liquid and poured into various molds. One of the biggest benefits of casting is that it can create valves with complex shapes, patterns, and sizes. Using a mold to manufacture these devices gives you more freedom to make different types of valves with more intricate parts.






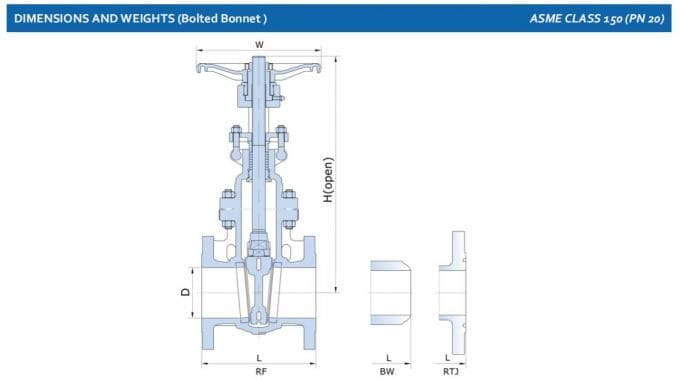

ASME CLASS 600 (PN 100)
Size	D	L			H	W	Weight RF/BW
in/mm		RF	RTJ	BW			(lb/kg)
2 50	2 51	11.5 292	11.63 295	11.5 292	16.5 418	441 200	79/64 36/29
2 ½ 65	2.5 64	13 330	13.13 333	13 330	18.75 476	551 250	115/93 52/42
3 80	3 76	14 356	14.13 359	14 356	20.38 518	617 280	148/117 67/53
4 100	4 100	17 432	17.13 435	17 432	25.5 646	661 300	247/183 112/83
5 125	5 125	20 508	2012 511	20 508	29.5 750	881 400	330/267 150/121
6 150	6 150	22 559	22.13 562	22 559	33 840	991 450	374/275 170/125
8 200	7.87 200	26 660	26.13 663	26 660	40.38 1025	1100 500	866/683 393/310
10 250	9.76 248	31 787	31.13 790	31 787	48.38 1230	23.62 600	1344/1040 610/472
12 300	11.73 298	33 838	33.13 841	33 635	57 1450	23.62 600	1960/1608 890/730
14 350	12.87 327	35 889	35.12 891	35 889	62 1575	-	2742/2324 1245/1055
16 400	14.76 375	39 991	39.13 994	39 991	70.62 1795	-	3370/2731 1530/1240
18 450	16.5 419	43 1092	43.13 1095	430 1092	76 1930	-	4317/2786 1960/1625
20 500	18.27 464	47 1194	47.25 1200	47 1194	87 2210	-	5396/4471 2450/2030
22 550	20.12 511	51 1295	51.38 1305	51 1295	97.24 2470	-	6123/4956 2780/2250
24 600	22 559	55 1397	55.38 1407	55 1397	101.5 2580	-	6597/5705 2995/2590
26 650	23.74 603	57 1448	57.5 1461	57 1448	105 2665	-	7654/6289 3475/2855
28 700	25.51 648	61 1549	61.5 1562	61 1594	109.5 2780	-	8205/6751 3725/3065
30 750	27.36 695	65 1651	65.5 1664	65 1651	114 2895	-	8910/7489 4045/3400
