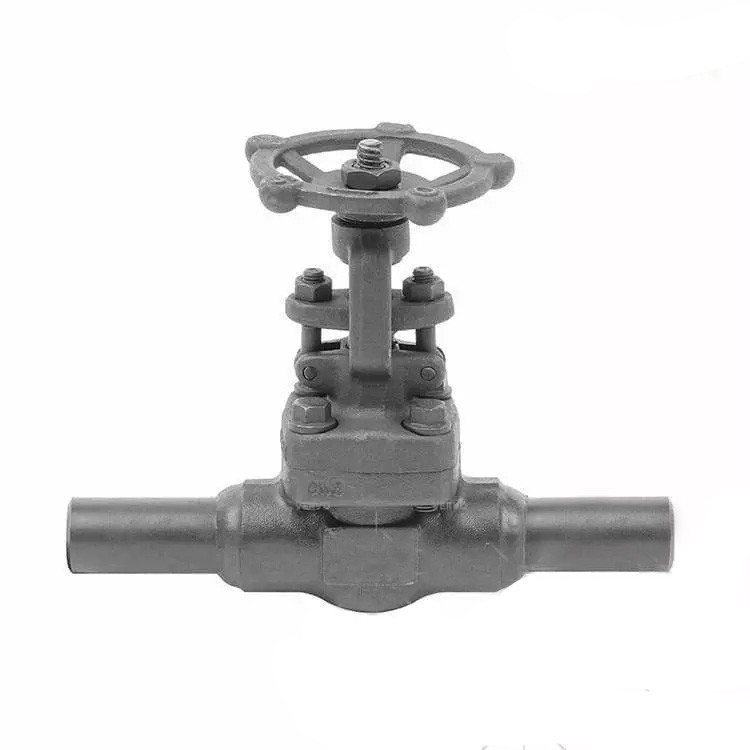

Extended Body Gate Valve, API 602, A105N, 3/4 Inch, 800 LB
Key Specifications / Features
We Provide Extended Body Gate Valves, ASTM A105N Metal Seated Gate Valves With Extend Welded Nipple, 3/4 Inch, DN20, Class 800 LB, API 602, BS 5352.
Request a quote
Detail Information
Forged Metal Seated Carbon Steel Long Welded Short Pipe At Both Ends With Nipple Gate Valve
Name: Forged Steel Extend Body Gate Valve
Size: 3/4 Inch, DN20
Pressure: Class 800 LB
Material: ASTM A105N
Media: Oli, Gas, Water
Standard: API 602, BS 5352
Temperature Of Media: -54℃ To 232℃
Forged Low-Temperature Carbon Steel Gate Valve-Extended Body
1. Forged Carbon Steel Gate Valve
2. Class 800, 900, 1500, 2500 LB
3. Reduced Port, Full Port
4. ASME B16.34
5. Maximum Pressure 1975 PSI
6. Maximum Temperature 850
7. Bolted Bonnet
8. API 602, API 598
9. NACE MR0175
10. Size: 1/2 - 4 Inch
Name: Forged Steel Extend Body Gate Valve
Size: 3/4 Inch, DN20
Pressure: Class 800 LB
Material: ASTM A105N
Media: Oli, Gas, Water
Standard: API 602, BS 5352
Temperature Of Media: -54℃ To 232℃
| Model number | Z61Y-800LB-DN20 |
| Item | High-Pressure Pressure Seal Bonnet Globe Valve 2500LB |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | EXTENDED BODY, WITH NIPPLE END |
| Body material | Forged steel ASTM A105N |
| Purpose | Suitable for Various industries |
| Temperature | -29-425 |
Forged Low-Temperature Carbon Steel Gate Valve-Extended Body
1. Forged Carbon Steel Gate Valve
2. Class 800, 900, 1500, 2500 LB
3. Reduced Port, Full Port
4. ASME B16.34
5. Maximum Pressure 1975 PSI
6. Maximum Temperature 850
7. Bolted Bonnet
8. API 602, API 598
9. NACE MR0175
10. Size: 1/2 - 4 Inch
