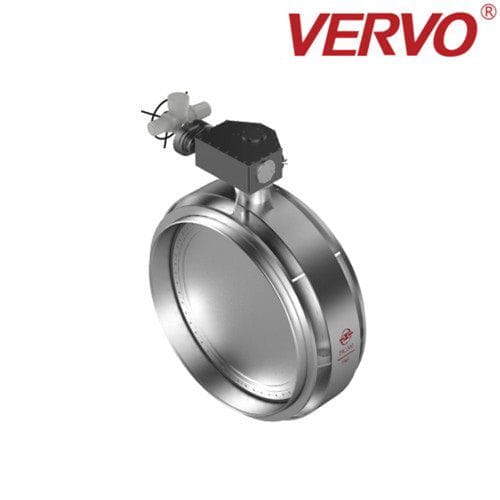

EN 593 Butterfly Valve, 80 Inch, DN2000, PN6, 150 LB

EN 593 Double Flange Gearbox Operated Butterfly Valve

Design Standard: API 609, EN 593
Body Material: Casting Steel Carbon Steel ASTM A216 WCB
Nominal Diameter: 80 Inch, DN2000, 2000MM
Pressure: PN6, Class 150 LB
End Connection: Double Flange
Face To Face: API 609
Test And Inspection: API 598
Seal: Soft Sealed
Material of Seal Surface: Soft Sealed
Work Pressure: High Pressure (Pn<10Mpa)
Working Temperature: Low Temperature (T<150°C)
Structure: Double Eccentric/Double Offset
Driving Mode: Worm Gear
Valve Stem: Normal
Application: Industrial Usage, Water Industrial Usage, Household Usage
Feature: Lugged butterfly valve, RF

Product Range

Size: 2 - 80 Inch, DN50-DN2000
Body: Carbon Steel, Stainless Steel
Disc: Carbon Steel, Stainless Steel, Monel
Shaft: Stainless Steel, Monel
Seat: PTFE, RPTFE, PPL
Operator: Worm Gear, Electric Actuator, Pneumatic Actuator

Uses of product

This product's working temperature is -35°C - 150°C and is suitable for throttling or shutting off the flow of corrosive or corrosive gases, liquids, semiliquids, semiliquids and solid powder, and can be installed in and selected position in pipelines or on vessels in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, Shipbuilding, water supply and sewage, metallurgy, energy engineering as well as light industry, etc.
