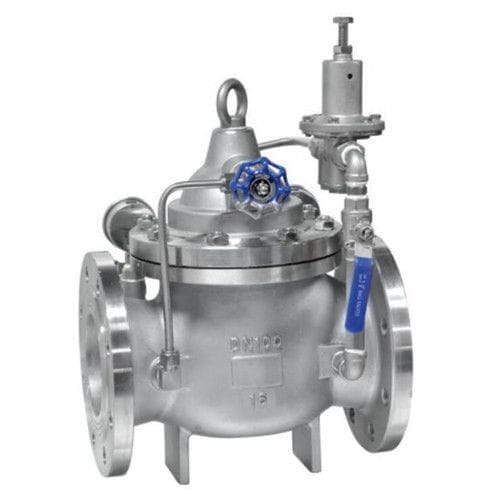

Diaphragm Remote Control Float Valve, DN100, PN16, CF8M
Key Specifications / Features
Get superior diaphragm remote control floating valves from a trusted supplier. Our valves are available in DN100 (4 inch) size, with a pressure rating of PN16 (Class 150 LB). Crafted with precision using ASTM A351 CF8M material and equipped with SS 316 trim, these valves ensure reliable performance. Featuring RF flanges, they offer secure connections. Upgrade your control system with our high-quality valves today.
Detail Information
Product: Diaphragm Remote Control Float Valve
Size: DN100
Pressure: PN16
Body: ASTM A351 CF8M
Trim: SS 316
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Connection: RF Flange
100X diaphragm remote control float valve is a hydraulically operated valve with multiple functions. Mainly installed at the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by the float ball pilot valve to close the water inlet to stop water supply, when the water level drops, the main valve is controlled by the float switch to open the water inlet Fill the pool with water to achieve automatic water replenishment. The liquid level control is precise, and it is not disturbed by water pressure. The 100X diaphragm-type remote control float valve can be installed at any position according to the height of the pool and the used space. Diaphragm valves have reliable performance, high strength, and flexible operation. They are suitable for pipelines below 450mm in diameter. It is recommended to use the piston type for diameters above 500mm.
Size: DN100
Pressure: PN16
Body: ASTM A351 CF8M
Trim: SS 316
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Connection: RF Flange
100X diaphragm remote control float valve is a hydraulically operated valve with multiple functions. Mainly installed at the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by the float ball pilot valve to close the water inlet to stop water supply, when the water level drops, the main valve is controlled by the float switch to open the water inlet Fill the pool with water to achieve automatic water replenishment. The liquid level control is precise, and it is not disturbed by water pressure. The 100X diaphragm-type remote control float valve can be installed at any position according to the height of the pool and the used space. Diaphragm valves have reliable performance, high strength, and flexible operation. They are suitable for pipelines below 450mm in diameter. It is recommended to use the piston type for diameters above 500mm.
