Cast Steel Bolted Bonnet Gate Valve, 16 Inch, 150 LB
Key Specifications / Features
Cast Steel Bolted Bonnet Gate Valve Provider: DIN Casting Steel Bolted Bonnet Gate Valves, 16 Inch, DN400, Class 150 LB, PN16, DIN 3352, GS C25.
Detail Information

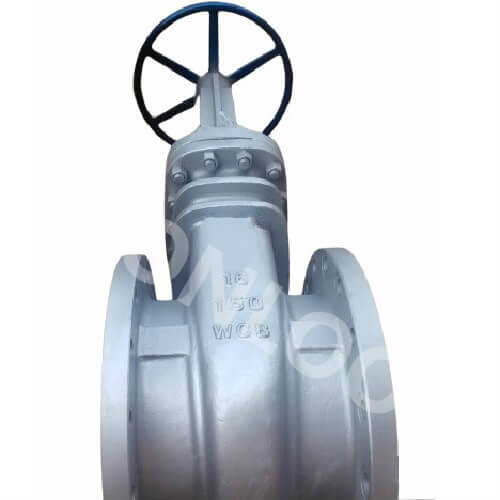

16 Inch Cast Steel Bolted Bonnet Gate Valve
Name: DIN Casting Steel Gate Valve
Standard: DIN 3352, GS C25
Pressure: PN16, Class 150 LB
Size: 16 Inch, DN400
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Product Range
Size: 1/4 Inch-16 Inch, DN8-DN400
Pressure: 150-800 LB, 1500 LB, 2500 LB, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420
Standard: API 6D, API 600, DIN 3352
Connection: RF Flange, RTJ Flange, BW
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
Design of Disc: Cast steel gate valves are made with flexible wedges by default. The solid wedge will be provided only upon request.
Design of Seat: Renewable seats and non-renewable seats are optional. The default for WCB body is seal welded seat, and body overlay seat against other valve body material.
Design of Body-Bonnet Connection: Bolted bonnet is normally applied on CL150-CL900. Body seal is defaulted by gasket and RTJ ring. Pressure seal bonnet is applied on CL1500-CL2500 with pressure seal ring for body seal.
Name: DIN Casting Steel Gate Valve
Standard: DIN 3352, GS C25
Pressure: PN16, Class 150 LB
Size: 16 Inch, DN400
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Product Range
Size: 1/4 Inch-16 Inch, DN8-DN400
Pressure: 150-800 LB, 1500 LB, 2500 LB, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420
Standard: API 6D, API 600, DIN 3352
Connection: RF Flange, RTJ Flange, BW
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
Design of Disc: Cast steel gate valves are made with flexible wedges by default. The solid wedge will be provided only upon request.
Design of Seat: Renewable seats and non-renewable seats are optional. The default for WCB body is seal welded seat, and body overlay seat against other valve body material.
Design of Body-Bonnet Connection: Bolted bonnet is normally applied on CL150-CL900. Body seal is defaulted by gasket and RTJ ring. Pressure seal bonnet is applied on CL1500-CL2500 with pressure seal ring for body seal.
