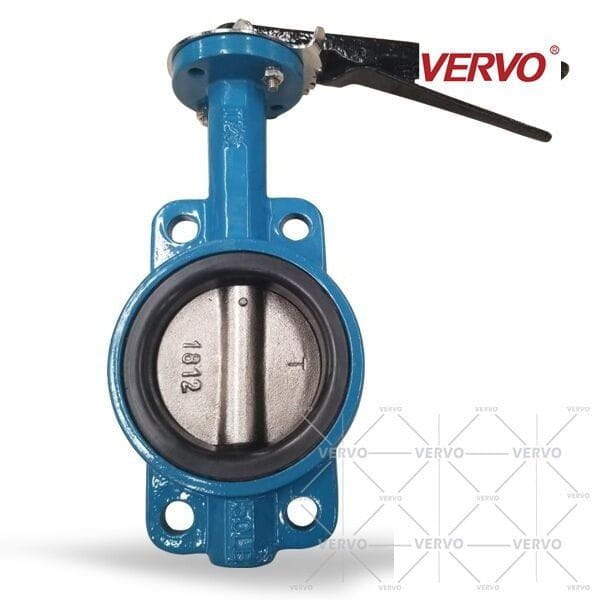

Cast Iron GG25 Worm Butterfly Valve, 4 IN, CL150, API 609
Key Specifications / Features
Cast Iron GGG40 Butterfly Valve Provider: API 609 GGG40 Butterfly Valves, Lug Type, 16 Inch, DN400, Class 150 LB, PN20, RF Flanged, Gearbox Operation.
API 609 Butterfly Valves
Wafer Butterfly Valves
Class 150 LB Butterfly Valves
Cast Iron Butterfly Valves
GG25 Butterfly Valves
Worm Butterfly Valves
4 Inch Butterfly Valves
DN100 Butterfly Valves
PN10 Butterfly Valves
ASTM Butterfly Valves
BS Butterfly Valves
DIN Butterfly Valves
ISO Butterfly Valves
JIS Butterfly Valves
Gray Iron Butterfly Valves
Casting Iron Butterfly Valves
Detail Information

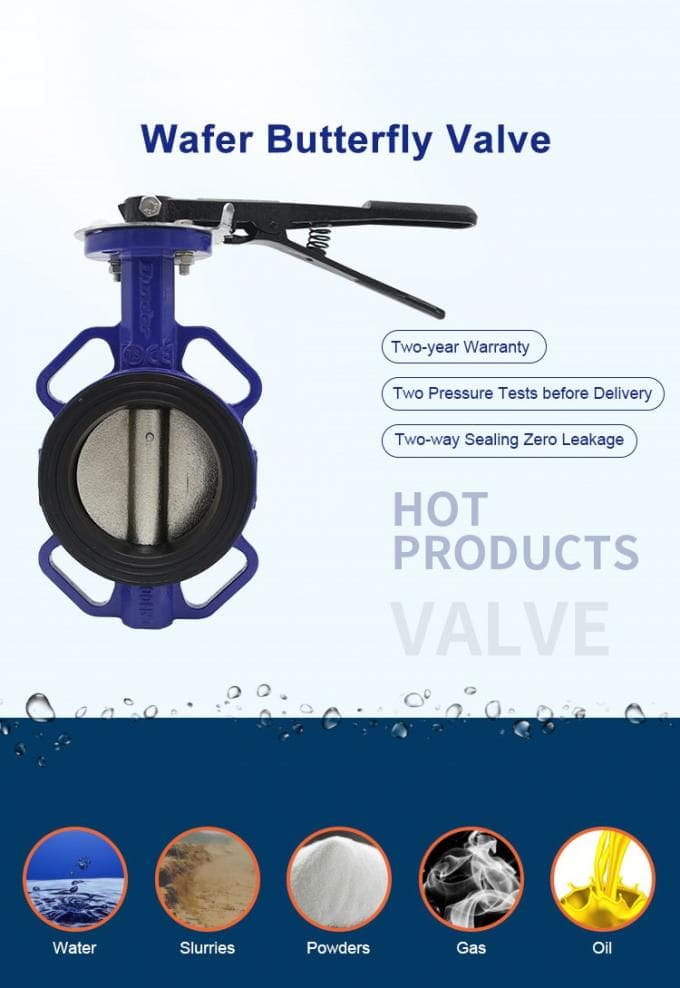

Gray Iron Castings GG25 Worm Butterfly Valve
Design Standard: API 609, ASTM, BS, DIN, ISO, JIS
Body Material: Cast Iron GG25
Nominal Diameter: 4 Inch, DN100, 100 MM
Pressure: Class 150 LB, CL150, PN10
End Connection: Wafer Type End
Face To Face: ASTM, BS, DIN, ISO, JIS
Test And Inspection: API 598

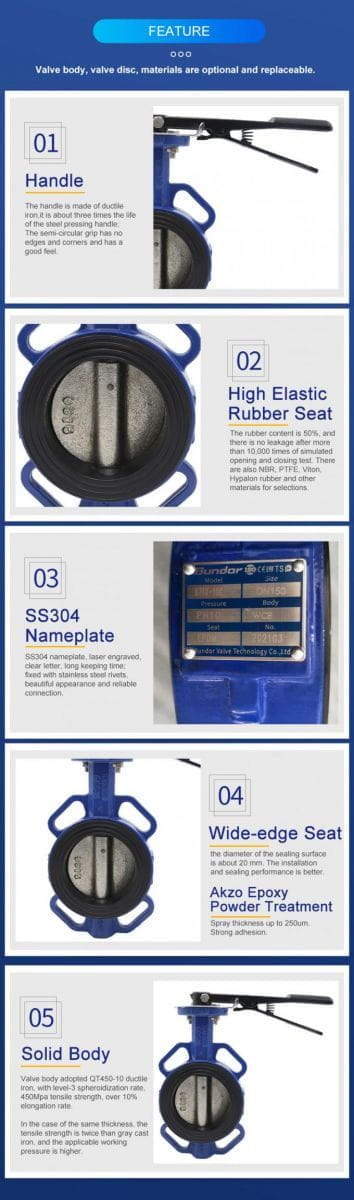

VERVO butterfly valves are offered in Triple Offset, Concentric Lining design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO butterfly valves are manufactured according to API 609 Design.
Design Standard: API 609, ASTM, BS, DIN, ISO, JIS
Body Material: Cast Iron GG25
Nominal Diameter: 4 Inch, DN100, 100 MM
Pressure: Class 150 LB, CL150, PN10
End Connection: Wafer Type End
Face To Face: ASTM, BS, DIN, ISO, JIS
Test And Inspection: API 598
VERVO butterfly valves are offered in Triple Offset, Concentric Lining design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO butterfly valves are manufactured according to API 609 Design.
PN10, PN16, 150 LB

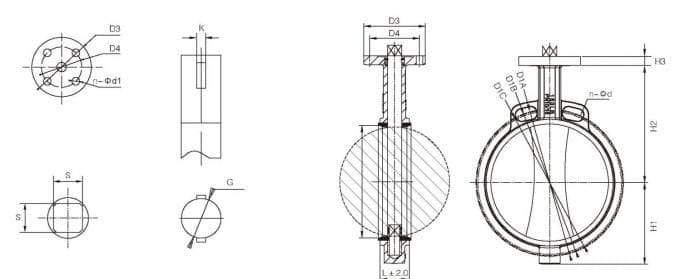

| NPS | DN | L | 150LB | PN16 | PN10 | 150LB | PN16 | PN10 | H1 | H2 | H3 | SxS/G | K | D3 | D4 | n-(Dd1 |
| D1A | D1B | D1C | n-①d | n-①d | n-①d | |||||||||||
| 1.1/2 | 40 | 42 | 98.4 | 110 | 110 | 4-19 | 4-18 | 4-18 | 67 | 133 | 14 | 9*9/12.6 | 3 | 65 | 50 | 4-7 |
| 2 | 50 | 42 | 120.7 | 125 | 125 | 4-19 | 4-18 | 4-18 | 67 | 133 | 14 | 9*9/12.6 | 3 | 65 | 50 | 4-7 |
| 2.1/2 | 65 | 45 | 139.7 | 145 | 145 | 4-19 | 8-18 | 8-18 | 75 | 137 | 14 | 9*9/12.6 | 3 | 65 | 50 | 4-7 |
| 3 | 80 | 45 | 152.4 | 160 | 160 | 4-19 | 8-18 | 8-18 | 82 | 159 | 14 | 9*9/12.6 | 3 | 65 | 50 | 4-7 |
| 4 | 100 | 52 | 190.5 | 180 | 180 | 8-19 | 8-18 | 8-18 | 105 | 171 | 18 | 11*11/15.7 | 5 | 90 | 70 | 4-10 |
| 5 | 125 | 54 | 215.9 | 210 | 210 | 8-22 | 8-18 | 8-18 | 118 | 189 | 22 | 14*14/18.9 | 5 | 90 | 70 | 4-10 |
| 6 | 150 | 54 | 241.3 | 240 | 240 | 8-22 | 8-22 | 8-22 | 135 | 209 | 22 | 14*14/18.9 | 5 | 90 | 70 | 4-10 |
| 8 | 200 | 59 | 298.5 | 295 | 295 | 8-22 | 12-22 | 8-22 | 165 | 258 | 24 | 17*17/22 | 5 | 125 | 102 | 4-12 |
| 10 | 250 | 66 | 362 | 355 | 350 | 12-26 | 12-26 | 12-22 | 200 | 299 | 30 | 22*22/28.4 | 8 | 125 | 102 | 4-12 |
| 12 | 300 | 77 | 413.8 | 410 | 400 | 12-26 | 12-26 | 12-22 | 230 | 337 | 30 | 22*22/31.6 | 8 | 150 | 125 | 4-14 |
| 14 | 350 | 77 | 476.3 | 470 | 460 | 12-29 | 16-26 | 16-22 | 274 | 350 | 45 | 22*22/31.6 | 8 | 150 | 125 | 4-14 |
| 16 | 400 | 86/102 | 539.8 | 525 | 515 | 12-29 | 16-30 | 16-26 | 304 | 405 | 50 | 27*27/33.2 | 10 | 175 | 140 | 4-18 |
| 18 | 450 | 105/114 | 577.9 | 585 | 565 | 16-32 | 20-30 | 20-26 | 335 | 409 | 50 | 27*27/38 | 10 | 175 | 140 | 4-22 |
| 20 | 500 | 130 | 635 | 650 | 620 | 20-32 | 20-33 | 20-26 | 368 | 460 | 60 | 36*36/41.1 | 10 | 210 | 165 | 4-22 |
| 24 | 600 | 151 | 749.3 | 770 | 725 | 20-33 | 20-36 | 20-30 | 428 | 516 | 70 | 36*36/50.6 | 16 | 210 | 165 | 4-22 |
| 28 | 700 | 163 | 863.6 | 840 | 840 | 28-35 | 24-36 | 24-30 | 520 | 648 | 80 | 46*46/62 | 18 | 300 | 254 | 8-18 |
| 32 | 800 | 190 | 977.9 | 950 | 950 | 28-39 | 24-39 | 24-33 | 580 | 668 | 80 | 46*46/62 | 18 | 300 | 254 | 8-18 |
| 36 | 900 | 203 | 1085.8 | 1050 | 1050 | 32-39 | 28-39 | 28-33 | 656 | 720 | 118 | 55*55/75 | 20 | 300 | 254 | 8-18 |
| 40 | 1000 | 216 | 1200.2 | 1170 | 1160 | 36-39 | 28-42 | 28-36 | 722 | 800 | 148 | 55*55/85 | 22 | 300 | 254 | 8-18 |

| DN | 40 | 50 | 65 | 50 | 80 | 100 | 125 | 150 |

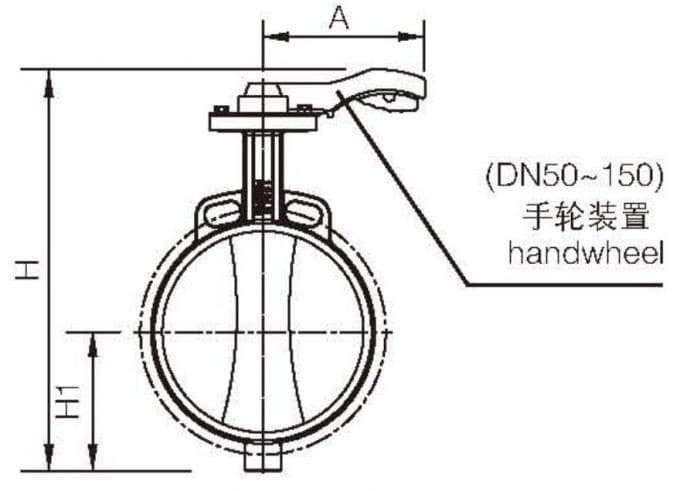

| H1 | 67 | 67 | 75 | 82 | 105 | 118 | 135 | 165 |
| H | 263 | 263 | 282 | 265 | 302 | 360 | 382 | 410 |
| A | 170 | 170 | 170 | 170 | 170 | 215 | 215 | 215 |

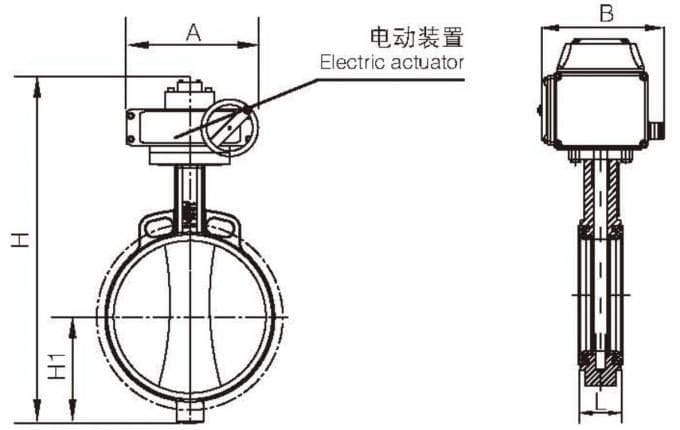

| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| H1 | 67 | 67 | 75 | 82 | 105 | 118 | 135 | 165 | 200 | 230 | 274 | 304 | 335 | 368 | 428 | 520 | 580 | 656 | 722 |
| H | 306 | 306 | 325 | 345 | 393 | 415 | 443 | 613 | 676 | 747 | 829 | 859 | 1020 | 1120 | 1301 | 1470 | 1603 | 1741 | 1887 |
| A | 208 | 208 | 208 | 208 | 208 | 208 | 208 | 299 | 299 | 294 | 294 | 361 | 361 | 361 | 417 | 485 | 485 | 534 | 534 |
| B | 174 | 174 | 174 | 174 | 174 | 174 | 174 | 292 | 292 | 308 | 308 | 426 | 426 | 426 | 479 | 578 | 578 | 650 | 650 |
| L | 42 | 42 | 45 | 45 | 52 | 54 | 54 | 59 | 66 | 77 | 77 | 86 | 105 | 130 | 151 | 163 | 190 | 203 | 216 |

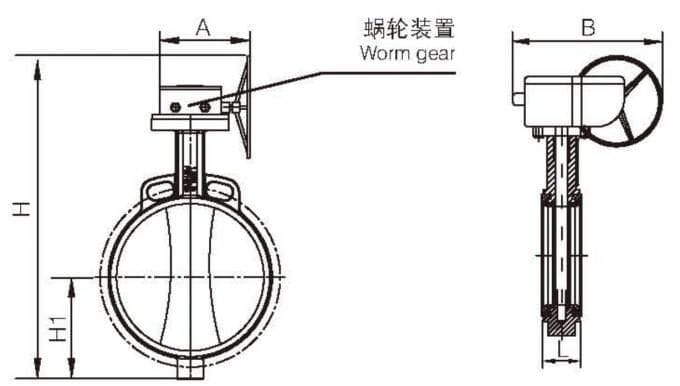

| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| H1 | 67 | 67 | 75 | 82 | 105 | 118 | 135 | 165 | 200 | 230 | 274 | 304 | 335 | 368 | 428 | 520 | 580 | 656 | 722 |
| H | 287 | 287 | 320 | 360 | 408 | 462 | 490 | 599 | 682 | 781 | 892 | 994 | 1050 | 1302 | 1531 | 1668 | 1847 | 1976 | 2122 |
| A | 130 | 130 | 140 | 140 | 186 | 254 | 254 | 296 | 384 | 384 | 501 | 533 | 589 | 589 | 638 | 1330 | 1380 | 1860 | 1860 |
| B | 59 | 59 | 70 | 70 | 91 | 120 | 120 | 137 | 173 | 173 | 208 | 224 | 274 | 274 | 322 | 320 | 360 | 440 | 440 |
| L | 42 | 42 | 45 | 45 | 52 | 54 | 54 | 59 | 66 | 77 | 77 | 86 | 105 | 130 | 151 | 163 | 190 | 203 | 216 |

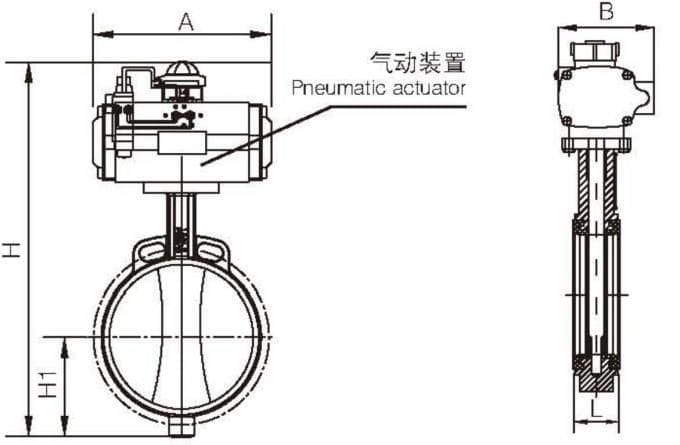

| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| H1 | 67 | 67 | 75 | 82 | 105 | 118 | 135 | 165 | 200 | 230 | 274 | 304 | 335 | 368 | 428 | 520 | 580 | 656 | 722 |
| H | 330 | 330 | 349 | 400 | 448 | 511 | 539 | 628 | 691 | 782 | 864 | 938 | 1325 | 1425 | 1606 | 1775 | 1908 | 2104 | 2250 |
| A | 165 | 165 | 212 | 212 | 212 | 259 | 259 | 259 | 259 | 259 | 284 | 284 | 644 | 644 | 644 | 803 | 803 | 887 | 1015 |
| B | 140 | 140 | 154 | 154 | 154 | 186 | 186 | 186 | 186 | 186 | 193 | 193 | 495 | 495 | 495 | 671 | 671 | 693 | 693 |
| L | 42 | 42 | 45 | 45 | 52 | 55 | 55 | 60 | 66 | 76 | 76 | 86 | 105 | 130 | 151 | 163 | 188 | 203 | 216 |
