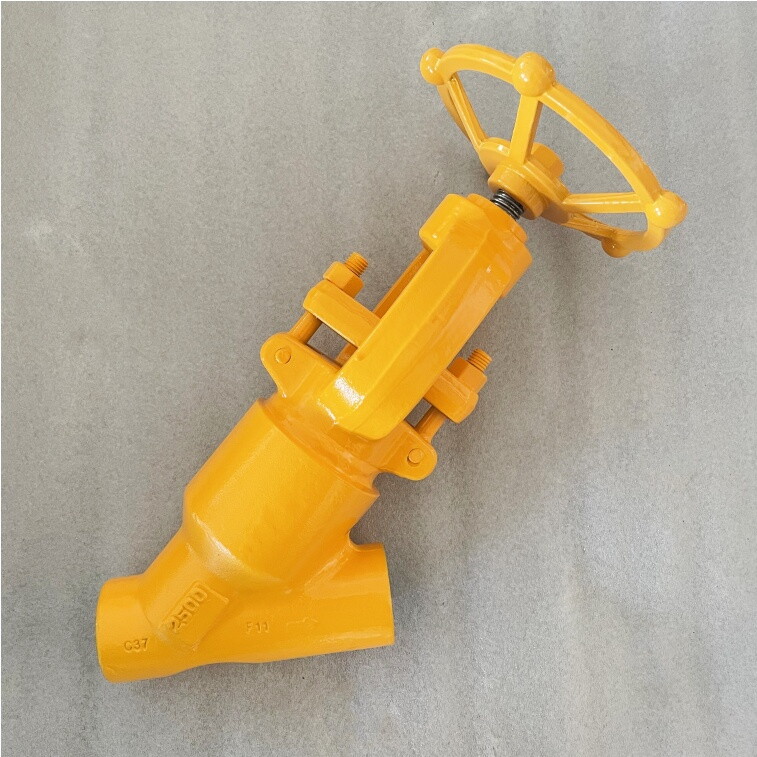

ASTM A336 F22 Y Globe Valve, 2 Inch, 2500 LB, API 602, BW

Name: ASTM A336 F22 Y Globe Valve, 2 Inch, 2500 LB, API 602, BW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover top-quality ASTM A336 F22 Y globe valves from a leading provider. Available in 2-inch size, Class 2500 LB, DN50, and PN420 specifications, API 602 compliant. Crafted from durable carbon steel with a pressure seal bonnet, rising stem, and BW end. Operate smoothly with the convenient handwheel mechanism. Perfect for high-pressure applications.

Request a quote

Detail Information

Y type Globe valve, carbon steel, NPS 2, 2500 LB, BW, HANDWHEEL.

Quick Detail

Valve description:
Y-type Globe valve, Pressure seal bonnet, RISING STEM.
Design: API 602.
Body: ASTM A336 F22
Nominal size: 2 INCH.
Nominal class: 2500 LB.
End Connection: BW.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, SW, RF.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +500℃.

Technical parameters and characteristics

Product	Y-type Globe valve.
Nominal diameter	1/2 Inch - 2 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon Steel.
Design standard	API 602.
Face to face	MFG'S.
Operation	Handwheel
Connection end	BW, SW, RF.
Test standard	API 598.
Package	Plywood
Application	The oil and gas industry
Port	Full OR reduce
