ASTM A216 WCB Plug Valve, 16 Inch, 150 LB, API 599
Key Specifications / Features
Explore Our High-Quality API 599 Plug Valve - 16 Inch, 150 LB, DN400, PN20, Carbon Steel (ASTM A216 WCB), Bolted Bonnet, Gear Box, RF End - Available in Sizes Ranging from 1/2 to 40 Inches
Request a quote
Detail Information

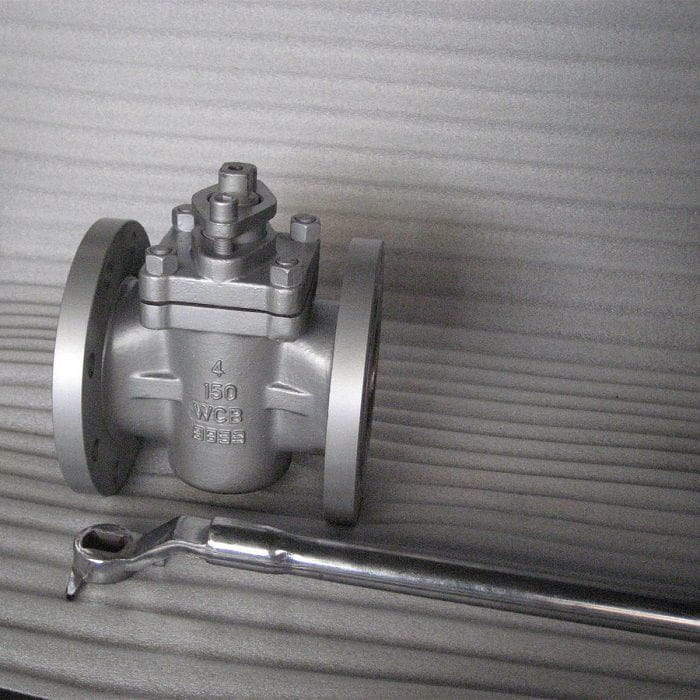

Plug valve, carbon steel, NPS 16 IN, 150 LB, WCB, Gear box.
Valve description:
Plug valve, carbon steel, bolted bonnet, Gear box.
Design: API 599
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Valve description:
Plug valve, carbon steel, bolted bonnet, Gear box.
Design: API 599
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | API6D,API599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
