ASTM A216 WCB Lubricated Plug Valve, 32 Inch, 600 LB
Key Specifications / Features
ASTM A216 WCB Lubricated Plug Valve Factory: ASTM A216 WCB Inverted Pressure Balanced Plug Valves, 32 Inch, 600 LB, API 599, API 6D, RTJ Flanged Ends.
Request a quote
Detail Information
Natural Gas Inverted Pressure Balance Lubricated Plug Valve
Design Standard: API 599, API 6D
Body Material: Casting Steel Carbon Steel ASTM A216 WCB
Nominal Diameter: 32 Inch, 800mm, DN800
Pressure: Class 600 LB
End Connection: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Mode of operation: Worm
Working temperature: -29℃ - +425℃
Technical Specifications of Plug Valves
Materials list
Note: The chart above only lists out some common compositions of steel parts. We may provide other different parts material compositions according to the customer's request or the actual valve working
Design Standard: API 599, API 6D
Body Material: Casting Steel Carbon Steel ASTM A216 WCB
Nominal Diameter: 32 Inch, 800mm, DN800
Pressure: Class 600 LB
End Connection: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Mode of operation: Worm
Working temperature: -29℃ - +425℃
Technical Specifications of Plug Valves
| Technical Specifications | API Serials | GB Serials |
| Design Specifications | API6D API599 BS5353 | GB/T19672 |
| Pressure and Temperature Class | ASME B16.34 | GB/T9124 |
| Face-to-face | ASME B16.10 | GB/T12221 GB/T15188.1 |
| Flange Type and Dimensions | ASME B16.5 ASME B16.47 | GB/T9113 JB/T79 |
| Butt-welding connection | ASME B16.25 | GB/T12224 |
| Socket-welded connection | ASME B16.11 | / |
| Threaded-welding connection | ASME B16.1.20 | / |
| Inspection and Test | API598 API6D | JB/T9092 GB/T13927 |
Materials list

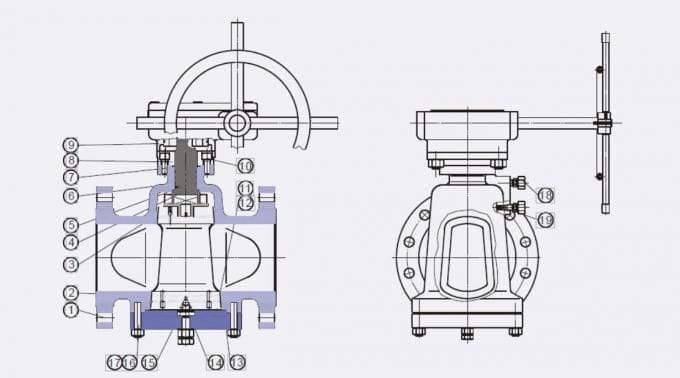

| No. | Part Name | Materials | Optional Materials |
| 1 | Body | Cast Steel | SS Monel |
| 2 | Disc | SS | SS Monel |
| 3 | Reach | Carbon Steel | SS Monel |
| 4 | Stem | SS | 316 Monel |
| 5 | Stop Gasket | Graphite | |
| 6 | O Ring | Viton | |
| 7 | Seal Ring | PTFE+SS | SS+ Graphite |
| 8 | Retainer Flange | Carbon Steel | SS Monel |
| 9 | Gear driver | / | / |
| 10 | Bolt | / | SS |
| 11 | Graphite Plate | SS+ Graphite | |
| 12 | Sheet Metal | INCONEL | |
| 13 | Cover Carbon Steel | SS | Monel |
| 14 | Cushion | SS | 316 Monel |
| 15 | Ball | SS | |
| 16 | Bolt | / | SS |
| 17 | Nut | / | SS |
| 18 | Injection Valve | Carbon Steel | SS Monel |
| 19 | Check Valve | Carbon Steel | SS Monel |
