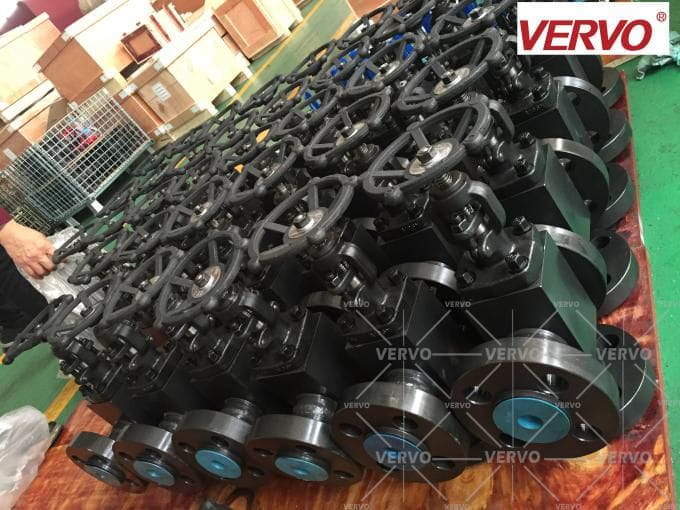

ASTM A216 WCB Angle Globe Valve, 6 Inch, 150 LB, RF

Right Angle Globe Valve Flanged Bolted Bonnet Full Bore Angle Pattern Valve

Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Nominal Diameter: 6 Inch, DN150
Pressure: Class 150 LB, PN20
End Connection: RF FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Working Temperature: -29℃ - +425℃
Mode of Operation: Handwheel

Angle pattern globe valve

The Angle pattern globe valve is a modified version of the "T"-Pattern Globe valve with an inlet and outlet at right angles. When fitted at a change in piping direction, this valve eliminates a bend and has the advantage of a smaller pressure drop than a conventional "T" pattern globe valve. Angle valves have the same features of stem, disc and seat ring design as the globe valve. The fundamental difference between the two is that the fluid flows through the angle valve and makes a 90° turn. These valves offer less resistance to flow than a globe valve with an elbow which it would replace. An angle valve reduces the number of joints in a line, in addition to saving installation time. They are also used in applications that have periods of pulsating flow because of their capability to handle the slugging effect of this type of flow. Quick Detail

Product Range

Design Standard: BS 1873, ASME B16.34
Body Material: Carbon steel, Stainless steel, Alloy steel
Normal diameter: 1/2 Inch - 24 Inch (DN15-DN600)
End connection: BW, Flanged
Pressure range: 150 - 2500 LB (PN16-PN420)
Operation: Handwheel, Gearbox, Electric, Pneumatic
Working temperature: -29℃ - +560℃.
