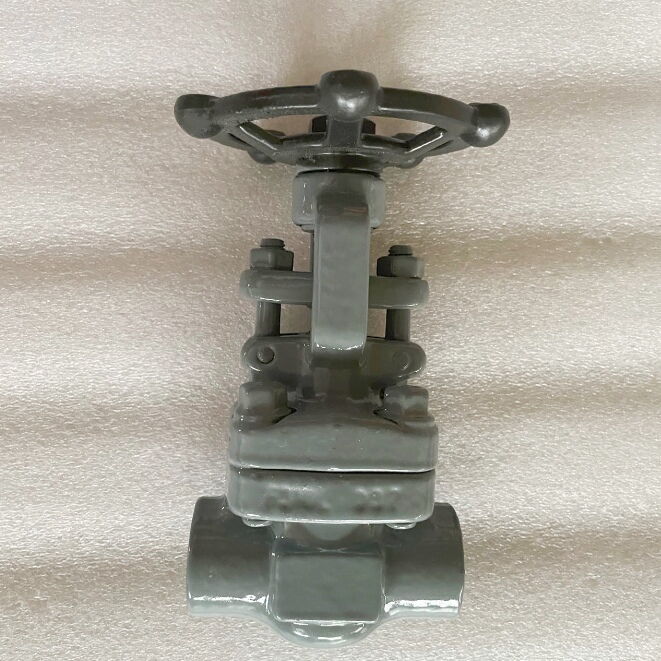

ASTM A182 F316L Gate Valve, API 602, OS&Y, 3/4 IN, CL150
Model Number: GTV-20240907-02
Key Specifications / Features
Our factory produces top-quality stainless steel gate valves, adhering to API 602 standards. Made from ASTM A182 F316L material, these valves feature an OS&Y design with an integral flanged connection and a bolted bonnet for enhanced durability. The rising stem ensures easy operation, while the 3/4-inch size and Class 150 LB rating make them ideal for various low-pressure applications. Designed for reliable performance, our valves are built to meet the needs of demanding industries.
Detail Information
API 602 OS&Y Gate Valve, Integral Flanged, F316L Body, 3/4 Inch, Class 150 LB.
Valve Description:
Rising Stem Gate Valve, Bolted Bonnet, Integral Flange, Reduce Port, OS&Y
Design Standard: API 602
Body Material: ASTM A182 F316L
Nominal Size: 3/4 Inch, DN20
Nominal Class: 150 LB, PN16
End Connection: ASME B16.5
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 - 2 Inch (DN15 - DN50)
End Connection: SW, NPT(THREAD), BW, Flanged
Pressure Range: PN16 - PN420 ( CL 150 LB - 2500 LB)
Working Temperature: -29°C - +300°C
Technical Parameters and Characteristics
Valve Description:
Rising Stem Gate Valve, Bolted Bonnet, Integral Flange, Reduce Port, OS&Y
Design Standard: API 602
Body Material: ASTM A182 F316L
Nominal Size: 3/4 Inch, DN20
Nominal Class: 150 LB, PN16
End Connection: ASME B16.5
Face to Face: ASME B16.10
Test and Inspection: API 598
Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 - 2 Inch (DN15 - DN50)
End Connection: SW, NPT(THREAD), BW, Flanged
Pressure Range: PN16 - PN420 ( CL 150 LB - 2500 LB)
Working Temperature: -29°C - +300°C
Technical Parameters and Characteristics
| Product Item | Gate Valve |
| Nominal Diameter | 1/2 Inch - 2 Inch |
| Design Temperature | Down to -29°C |
| Design Pressure | PN16 - PN420 |
| Material | Stainless Steel |
| Design Standard | API 602 |
| Face to Face | MFG’S |
| Connection End | SW, NPT(THREAD), BW, Flanged |
| Test Standard | API 598 |
| Package | Plywood |
| Application | Water, steam and air |
| Certificate | CE, ISO 9001, ISO 14001, TS |
