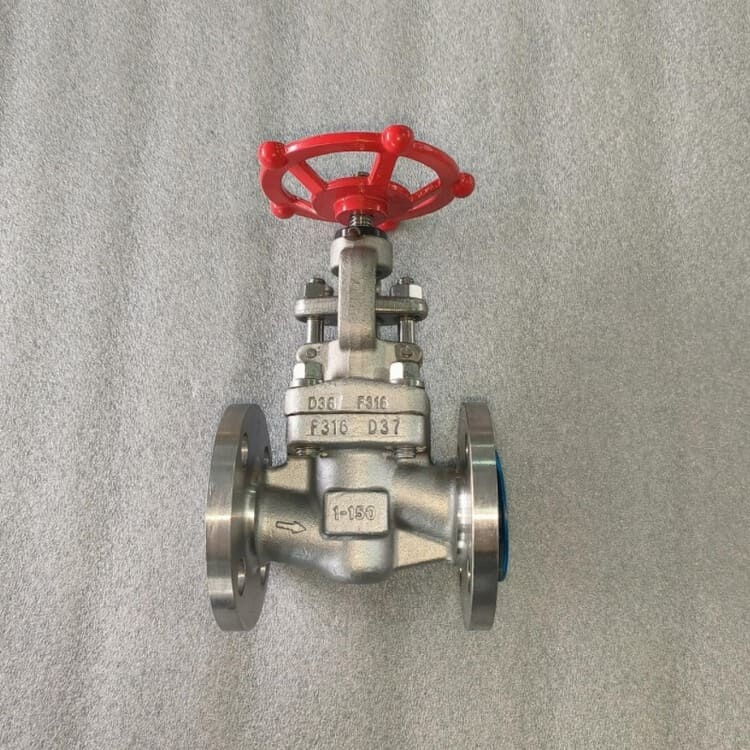

ASTM A182 F316 Globe Valve, API 602, 800 LB, 1 Inch, RF
Model Number: GLV-20241008-04
Key Specifications / Features
As a trusted API 602 globe valve factory from China, we manufacture premium valves using ASTM A182 F316 stainless steel for superior corrosion resistance. Designed for demanding applications, our globe valves are available in a 1-inch (DN25) size, rated for Class 800 LB (PN130). Featuring a bolted bonnet for enhanced strength, these valves come with 100mm nipples and socket weld (SW) connections, as well as RF flanged ends for secure, leak-proof performance. Built for reliability, they provide precise flow control across various industrial environments.
Detail Information
ASTM A182 F316 Globe Valves, API 602, Bolted Bonnet, RF Flanged.
Valve Description:
Globe Valve, Bolted Bonnet, RF, Reduce Bore.
Design Standard: API 602
Body: ASTM A182 F316
Nominal Size: 1 Inch, DN25
Nominal Class: Class 800 LB, PN130
End Connection: 100MM NIPPLE*SW
Operation: HANDWHEEL
Face to Face: MFG’S.
Test and Inspection: API 598
Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: BW, Flange, 100 MM NIPPLE * SW
Pressure Range: Class 150 LB - 1500 LB (PN16 - PN250)
Working Temperature: -29°C - +425°C
Technical parameters and characteristics
Valve Description:
Globe Valve, Bolted Bonnet, RF, Reduce Bore.
Design Standard: API 602
Body: ASTM A182 F316
Nominal Size: 1 Inch, DN25
Nominal Class: Class 800 LB, PN130
End Connection: 100MM NIPPLE*SW
Operation: HANDWHEEL
Face to Face: MFG’S.
Test and Inspection: API 598
Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: BW, Flange, 100 MM NIPPLE * SW
Pressure Range: Class 150 LB - 1500 LB (PN16 - PN250)
Working Temperature: -29°C - +425°C
Technical parameters and characteristics
| Product Item | Globe Valve |
| Nominal Diameter | 1/2 Inch - 2 Inch |
| Design temp. | Down to -29°C |
| Design Pressure | Class 150 - 1500 LB |
| Material | Stainless Steel |
| Design Standard | API 602 |
| Face to Face | MFG’S. |
| Operation | Handwheel |
| Connection End | BW, Flange,100MM NIPPLE*SW |
| Test Standard | API 598 |
| Package | Plywood |
| Application | The oil and gas industry |
