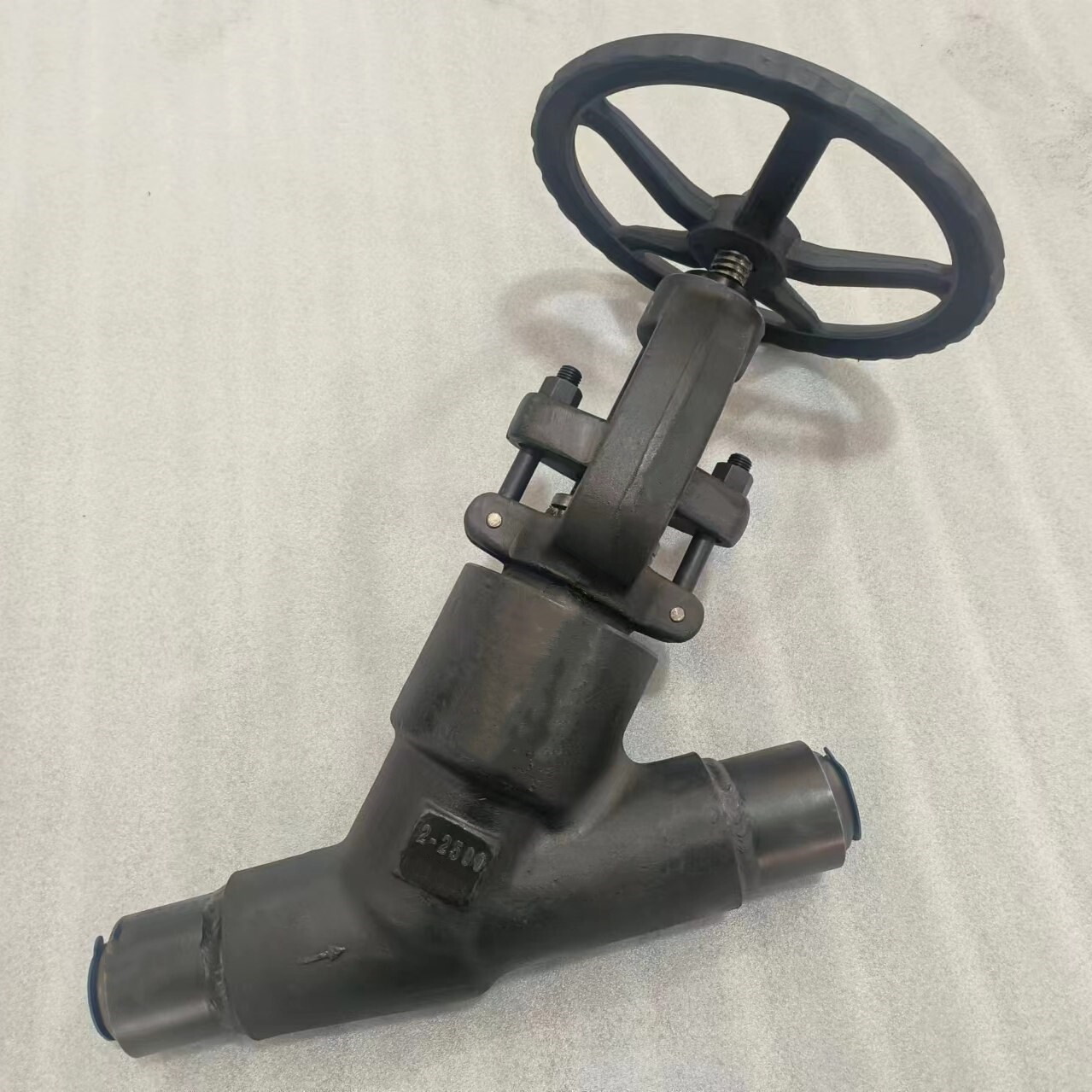

ASTM A182 F22 Globe Valves, API 602, 1500 LB, 2 Inch, BW

Name: ASTM A182 F22 Globe Valves, API 602, 1500 LB, 2 Inch, BW
SKU: VERVO-GLV-20241227-08
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading API 602 globe valve manufacturer in China, we offer high-temperature valves made from carbon steel ASTM A182 F22. These valves are designed with a 1500 LB pressure rating and 2-inch (DN50) size, providing reliable performance in demanding high-temperature applications. Featuring a rising stem and OS&Y design, they ensure smooth operation and easy maintenance. With BW end connections and a PN250 rating, our globe valves deliver exceptional sealing, durability, and performance for critical industrial systems and processes.

Request a quote

Detail Information

API 602 High-Temperature Globe Valves, ASTM A182 F22, BW.

Valve Description:
Globe Valve, Reduce Bore, Rising Stem, OS&Y.
Design Standard: API 602
Body Material: ASTM A182 F22
Nominal Size: 2 Inch, DN50
Nominal Class: Class 1500 LB, PN250
End Connection: BW
Operation: Handwheel
Face to Face: MFG'S
Test and Inspection: API 598

Product Range:
Body Material: Carbon Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: BW, Flange, SW
Pressure Range: 150 - 1500 LB (PN16 - PN250)
Working Temperature: -29°C - +500°C

Technical Parameters and Characteristics

Product Item	Globe Valve
Nominal Diameter	1/2 Inch - 2 Inch
Design Temp.	Down to -29°C
Design Pressure	Class 150 - 1500 LB
Body Material	Carbon Steel
Design Standard	API 602
Face to Face	MFG' S
Operation	Handwheel
Connection End	BW, Flange
Test Standard	API 598
Package	Plywood
Application	The oil and gas industry
