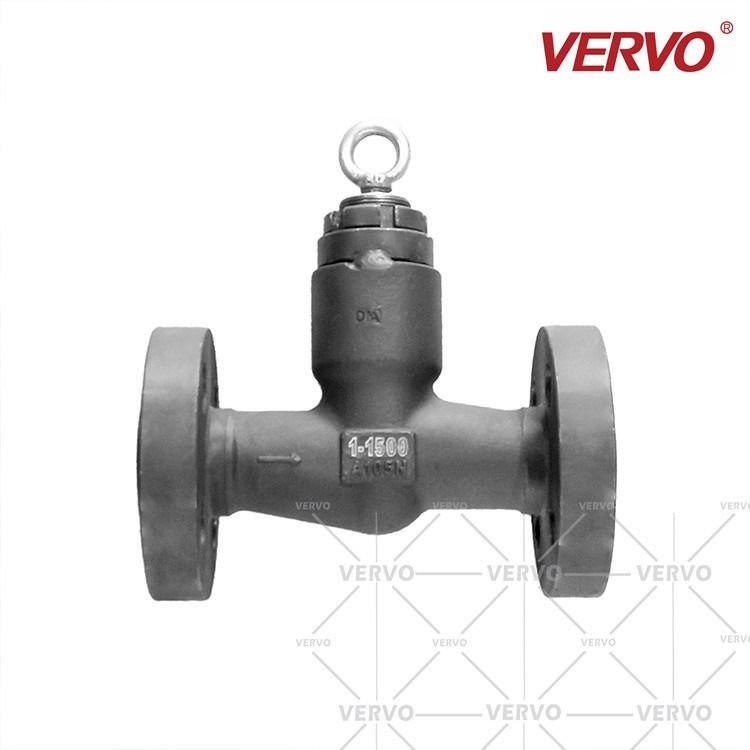

ASTM A105N Pressure Seal Check Valve, 1 Inch, 2500 LB, RTJ
Key Specifications / Features
Piston Lift Check Valve Maker: Made from ASTM A105N Carbon Steel, Pressure Seal Design, 1 Inch Size, 2500 LB Pressure Rating, DN25, PN420, Conforming to API 602, BS 5352, and ASME B16.34 Standards. Features RTJ Flange.
Request a quote
Detail Information
25mm 1 Inch Flanged Pressure Seal Check Valve Piston Lift 2500 LB Forged Steel Check Valve
Design Standard: API 602, BS 5352, ASME B16.34
Body Material: Carbon Steel ASTM A105N
Nominal Diameter: 1 Inch, DN25
Pressure: Class 2500 LB
End ConnectiSWon: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Flanged Pressure Seal Check Valve, 25mm Pressure Seal Check Valve, piston lift type check valve
Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Buttwelding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Design Standard: API 602, BS 5352, ASME B16.34
Body Material: Carbon Steel ASTM A105N
Nominal Diameter: 1 Inch, DN25
Pressure: Class 2500 LB
End ConnectiSWon: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Flanged Pressure Seal Check Valve, 25mm Pressure Seal Check Valve, piston lift type check valve
Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Buttwelding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
