ASTM A105N Lift Check Valve, 1 Inch, 800 LB, API 602, SW

Name: ASTM A105N Lift Check Valve, 1 Inch, 800 LB, API 602, SW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our premium Lift Check Valve, crafted with high-quality ASTM A105N Carbon Steel. This 1-inch valve is designed for 800 LB pressure, meeting API 602 standards. With a DN25 size and PN130 rating, it features a Bolted Bonnet for secure sealing and an Integral Seat for improved performance. Suitable for SW End connections, it accommodates pipe sizes ranging from 1/2 to 2 inches and pressure ratings from 150 to 2500 LB. Trust in reliability and precision with this industry-standard valve.

Request a quote

Detail Information

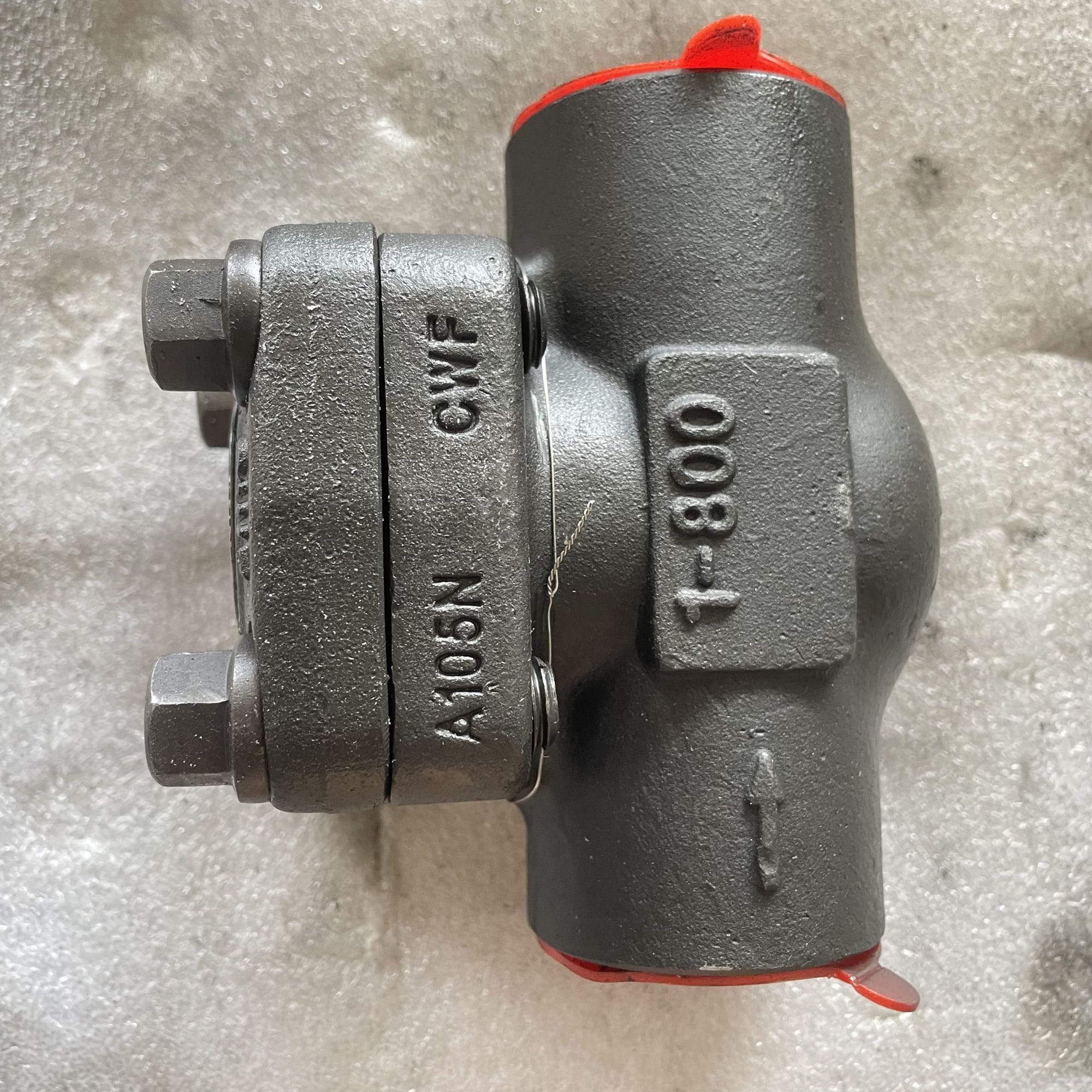

Lift check valve, carbon steel, NPS 1 IN, 800 LB, A105N, SW.

Valve description:
Lift check valve, bolted bonnet, SW, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
Face to face: MFG.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Lift check valve.
Nominal diameter	1/2 Inch - 2 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon Steel.
Design standard	API 602.
Face to face	MFG
Connection end	SW
Test standard	API 598.
Package	Plywood
Application	water, oil and gas.
