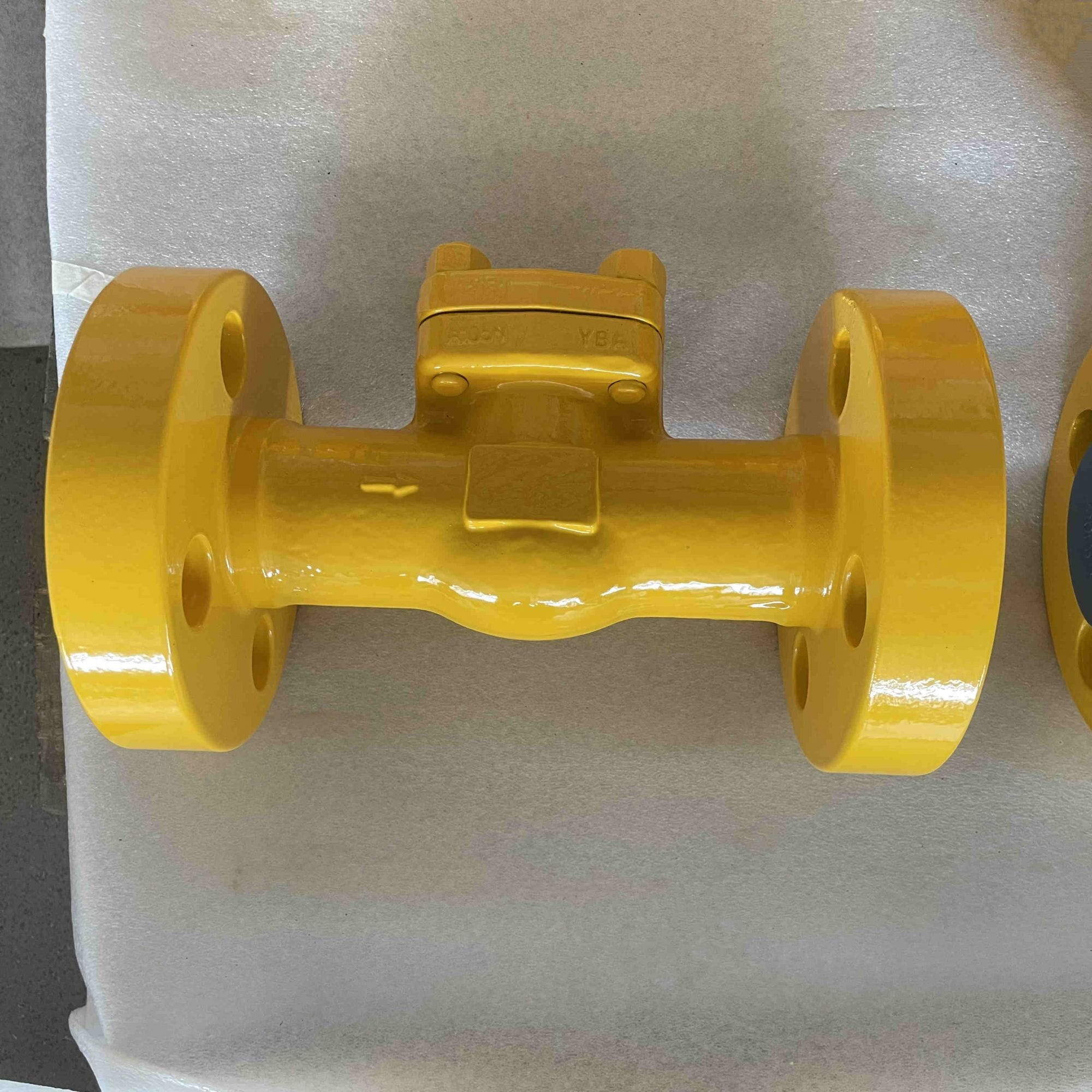

ASTM A105N Lift Check Valve, 1-1/2 Inch, 150 LB, API 602, RF

Name: ASTM A105N Lift Check Valve, 1-1/2 Inch, 150 LB, API 602, RF
Brand: www.vervovalve.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our premium 1-1/2 inch Carbon Steel Lift Check Valve, engineered to the highest industry standards. This valve, rated at 150 LB (PN20), is manufactured in compliance with API 602 and crafted from ASTM A105N steel. It features a RF end, a robust bolted bonnet, an integral seat, and raised flanged ends for enhanced performance.

RF Check Valves Carbon Steel Check Valves Lift Check Valves ASTM A105N Check Valve 1 1/2 Inch Check Valve DN40 Check Valve Class 150 LB Check Valve PN20 Check Valve API 602 Check Valve Bolted Bonnet Check Valve

Detail Information

Lift check valve, carbon steel, NPS 1-1/2, 150 LB, A105N, Raised flange.

Valve description:
Lift check valve, bolted bonnet, Raised flange, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1-1/2 Inch.
Nominal class: 150 LB.
End Connection: flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Butt Welding, flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Lift check valve.
Nominal diameter	1/2 Inch - 2 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon Steel.
Design standard	API 602.
Face to face	ASME B16.10.
Connection end	Butt Welding, flange.
Test standard	API 598.
Package	Plywood
Application	water, oil and gas.
Certificate	CE, TUV, ISO9001, ISO14001
