ASTM A105 Two-Piece Ball Valve, 1 Inch, 150 LB, API 608
Key Specifications / Features
We Provide Two-Piece Ball Valves, ASTM A105 Forged Steel 2 Piece Ball Valves, 1 Inch, DN25, Class 150 LB, PN20, API 608, BS 5352, ASME B16.34, Soft Seal.
Request a quote
Detail Information

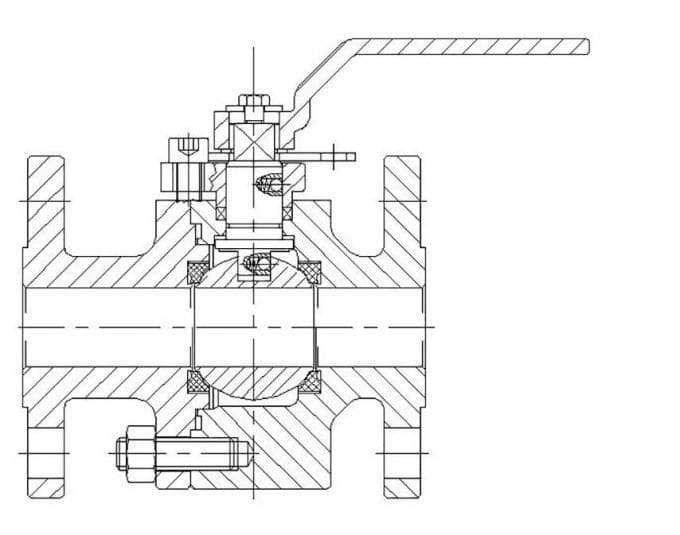

Forged Steel Two-Piece Ball Valve
Name: 2 Piece Ball Valve
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: ASTM A105
Standard: API 608
Temperature Of Media: -29℃ To 120℃
Feature: Full Bore, Soft Seal Integral Flange, Low Pressure, Full Diameter
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-1500 LB
Design: API 608, BS 5352, ASME B16.34
Connection: RF, RTJ, SW
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Name: 2 Piece Ball Valve
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: ASTM A105
Standard: API 608
Temperature Of Media: -29℃ To 120℃
Feature: Full Bore, Soft Seal Integral Flange, Low Pressure, Full Diameter
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-1500 LB
Design: API 608, BS 5352, ASME B16.34
Connection: RF, RTJ, SW
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
