ASTM A105 Sleeved Plug Valve, 1 IN, 150 LB, API 599, API 6D

ASTM A105 Sleeved Plug Valve

Design Standard: API 599, API 6D
Body Material: Forging Steel, Carbon Steel, ASTM A105
Nominal Diameter: 1 Inch, 25mm, DN25
Pressure: Class 150 LB, CL150, PN20
End Connection: RF Flange, Socket Weld End
Face To Face: ASME B16.10
Test And Inspection: API 598
Mode of operation: Wrench
Temperature: -29℃ - +425℃
Type: Sleeved Plug Valves, Inverted Pressure Balance Lubricated Plug Valve

Product Range

Size: 1/2 Inch - 28 Inch (DN15-DN700)
Pressure: Class 150-900 LB (PN16-64)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design & Manufacture Standard: API 599, API 6D
Face to face dimension standard: ASME B16.10, DIN 3202 F1.
End Connections: ASME B16.5, ASME B16.47, DIN 2543-2549
Test & Inspect standard: API 598, DIN 3230

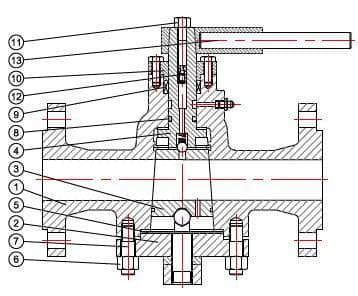

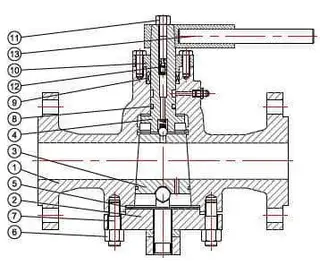

Parts Name	Material
Body	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M
Cover	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M
Plug	A182 F6a / A182 F22, F304			A182 F304	A182 F316
Stem	A182 F6a / A182 F304			A351 CF8	A351 CF8M
Gasket	Flexible Graphite+Stainless Steel / PTFE
Bolt	A193 B7			A193 B8	A193 B8M
Nut	A194 2H			A194 8	A194 8M
O-Ring	NBR / VITON
Packing	Flexible Graphite / PTFE
Gland	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M
Oil Nozzle	B62
Check Valve	A182 F6a			A182 F304	A182 F316
Wrench	A536 60-40-18

Note: The chart above only lists out some common compositions of steel parts. We may provide other different parts material composition according to the customer's request or the actual valve working condition.
